BONOMI  |  SKU: 8P720791-1

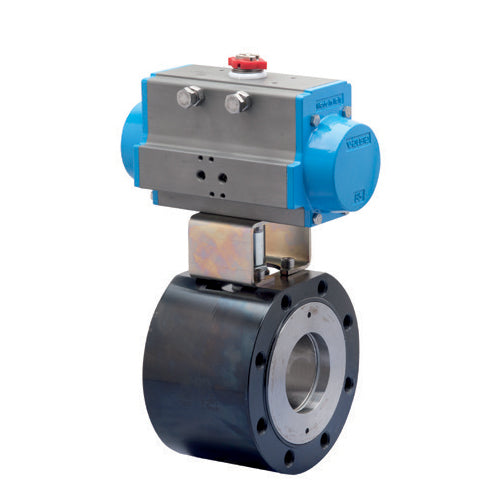

BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

$39729 USD $51500
Shipping calculated at checkout.
Size
Actuator Action

BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1" ANSI CLASS 150 WAFER STYLE / DOUBLE ACTING

Shipping Weight:
9.92 lb

Technical Description

BONOMI 8P720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR

Delivery and Shipping

Usually ships within a week. We will notify you if lead time is extended.

Contact us if you have any questions.

Please contact us if you need assistance selecting your valve assembly.

Description

The BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for steam and pneumatic applications. It features a 2-way, ANSI 150 Carbon Steel Wafer-style Flanged Ball Valve with multiple V-stem packing.

The valve's specifications include a carbon steel ANSI 150 full port, sizes 1/2” to 6”, temperature range of -4°F to 366°F, blow out proof stem design, R.P.T.F.E. seats, packing and thrust washer, space saving design, TUV T.A. Luft approved, ANSI B16.34 design, and ISO 5211 mounting pad with double “D” stem.

The actuator's specifications include a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.

Specifications and Data Sheet
  • Data Sheet
    nullDownload
  • Valve Type
    BALL VALVE
  • Temperature Rating
    -4 °F to 406 °F
  • Pressure Rating
    285 PSI
  • Valve Body Type
    WAFER STYLE
  • Approvals
    TÜV T.A. LUFT APPROVED
  • Valve Body Configuration
    2-WAY
  • Valve Connection Type
    ANSI 150 Flanged Ends
  • Body Material
    CARBON STEEL
  • Actuator Housing Material
    Hard Anodized Aluminum
