BONOMI SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1" ANSI 300 FLANGED SPLIT BODY / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
*** Due to high order volume, orders may require additional business days to process.
Order processing time for manual valves and actuators is 5-7 business days + Transit time.
Most valves assemblies have a processing time of 10-15 days + transit time.
Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.
All processing times are subject to availability and current production load.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DE...

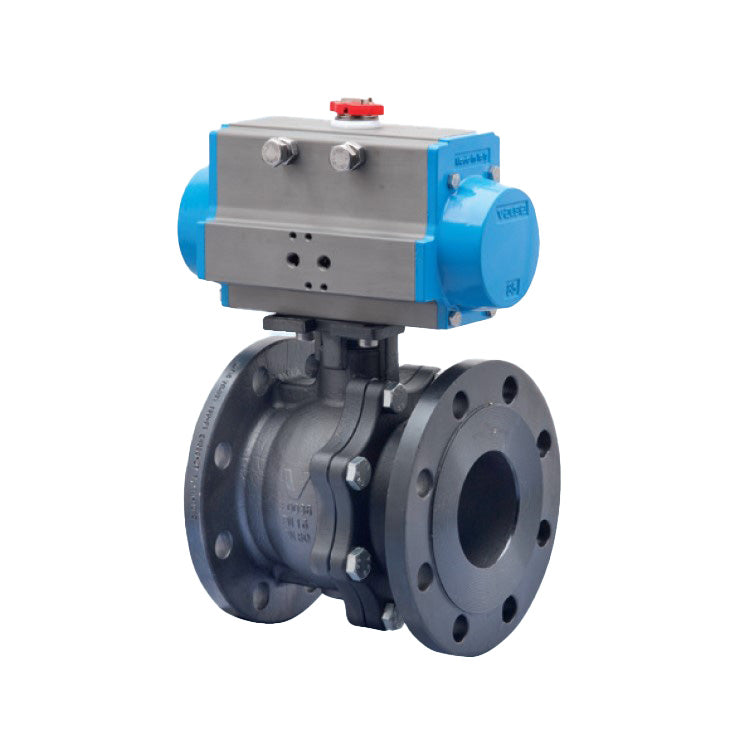

The BONOMI SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for direct mount applications. It features a 2-way, ANSI 150 Carbon Steel Split-Body Style Flanged Ball Valve and Pneumatic Actuator, making it suitable for water, gas, and oil applications.
The valve is made of carbon steel and is ANSI class 150 flanged, with a direct mount ISO 5211/square stem. It has a full port, with sizes ranging from 1” to 4”, and a temperature range of -4°F to 400°F. It also features a blow-out proof stem, adjustable stem packing, P.T.F.E. seats, packing and thrust washer, and FKM Viton O-rings. It is fire safe certified to API 607 6th edition and is 100% tested.
The actuator is made of hard anodized extruded aluminum body, with concentric spring sets, die cast aluminum end caps, and solid steel barstock pinion (not casting). It has a 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F and requires no lubrication maintenance for its entire lifetime. It is also 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
