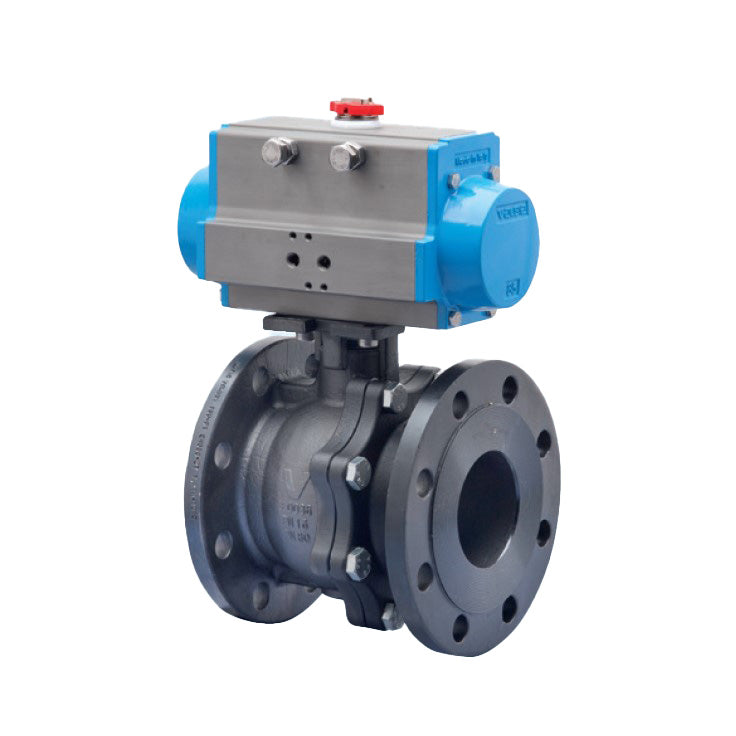

BONOMI SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for direct mount applications. It features a 2-way, ANSI 150 Carbon Steel Split-Body Style Flanged Ball Valve and Pneumatic Actuator, making it suitable for water, gas, and oil applications.

The valve is made of carbon steel and is ANSI class 150 flanged, with a direct mount ISO 5211/square stem. It has a full port, with sizes ranging from 1” to 4”, and a temperature range of -4°F to 400°F. It also features a blow-out proof stem, adjustable stem packing, P.T.F.E. seats, packing and thrust washer, and FKM Viton O-rings. It is fire safe certified to API 607 6th edition and is 100% tested.

The actuator is made of hard anodized extruded aluminum body, with concentric spring sets, die cast aluminum end caps, and solid steel barstock pinion (not casting). It has a 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F and requires no lubrication maintenance for its entire lifetime. It is also 100% factory tested.
