BONOMI SERIES 770 2-WAY ST. ST. BODY 3-PIECE SANITARY TRI-CLAMP NON-CA

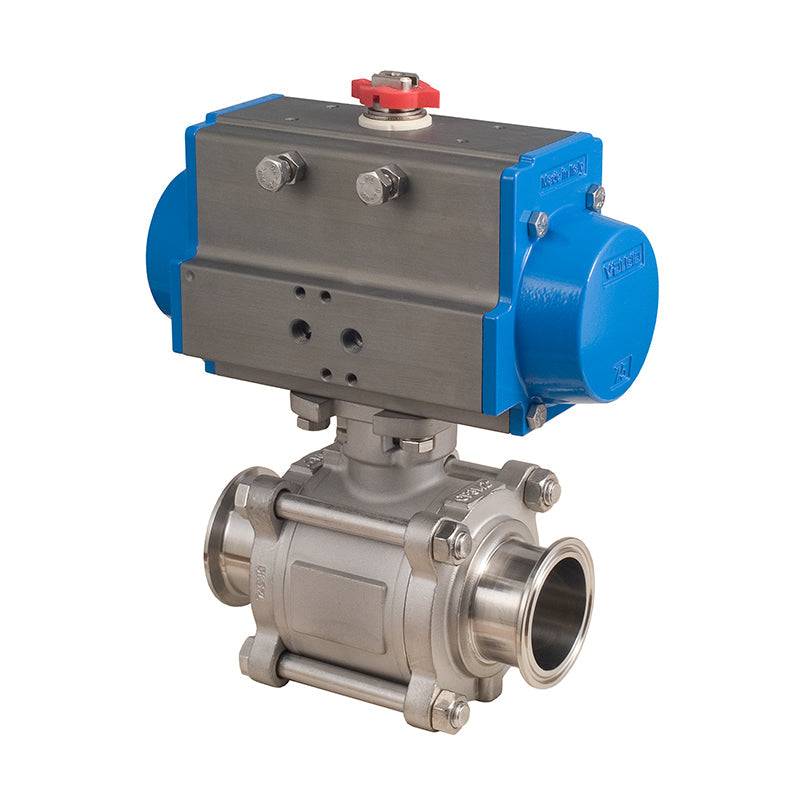

The BONOMI SERIES 770 2-WAY ST. ST. BODY 3-PIECE SANITARY TRI-CLAMP NON-CAVITY FILLED BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for direct mount applications. It features a non cavity-filled stainless steel ball valve with sanitary ends and a pneumatic actuator. It is suitable for hot water, steam, oil, and gases.

The valve's specifications include a blowout proof stem design, ISO 5211 direct mount/square stem, anti-static device, international polishing to Ra 15 micron, and tri-clamp style end connection. It complies with standards such as ISO 5211, ANSI B16.11, MSS SP-25, and MSS SP-55. It is also maintenance free and live loaded double sealing stem.

The actuator's specifications include a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a working temperature of -4°F - 302°F. It is also 100% factory tested and requires no lubrication maintenance for its entire lifetime.

Assembly Description

BONOMI 8P0770 WITH SERIES 770, 1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 3/4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 1" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 1-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 2-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 3" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0770 WITH SERIES 770, 4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 3/4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 1" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 1-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 2-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 3" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0772 WITH SERIES 770, 4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 450 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

Sanitary Tri-Clamp Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
