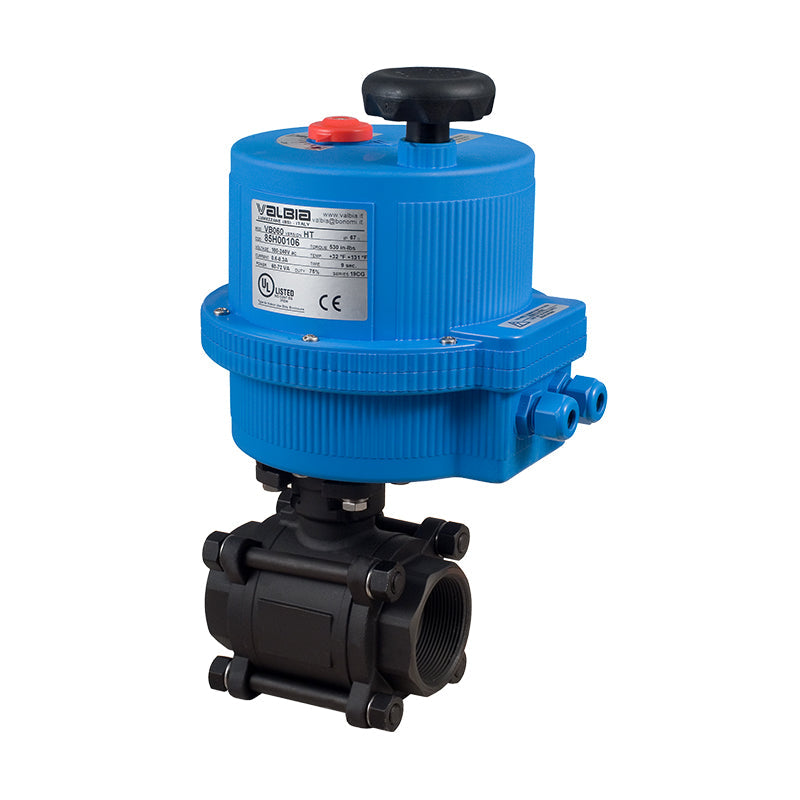

Name: BONOMI 8E0620 WITH SERIES 620LL 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR
Brand: BONOMI
SKU: 8E0620-002-1/4
Price: 312.43 USD
Availability: InStock

Description

Experience superior performance with the BONOMI 8E0620 & Series 620LL 2-Way Carbon Steel 3-Piece NPT Ball Valve paired with Plastic Valbia Electric Actuator. Boasting a 3-piece steel body, NPT ends, and full port design (1/4"-4"), it is robust and versatile. The ISO 5211 mounting pad with 1000 psi (1/4"-2") & 800 psi (2.5"-4") pressure rating testifies to its engineering excellence. Operating in -60°F to +440°F, its blow-out-proof stem & multi-layer stem packing guarantee reliable performance. The actuator features NEMA 4 housing, CSA/UL approvals and operates in -4°F to 131°F temperatures, all in a strong IP67 Technopolymer housing. With many voltage options, dual patterns, & PG11 electrical connection with optional 1/2" conduit, this assembly provides an unparalleled solution.

Specifications and Data Sheet

Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-40 °F to 440 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

CARBON STEEL
Actuator Housing Material

Technopolymer
