BONOMI | SKU:
8E3210-062-1/2
BONOMI 8E3210 WITH SERIES RB 3210 3-WAY BRASS NPT DIVERTER BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR
$58706 USD
$76100
Unit price
/
Unavailable
Shipping calculated at checkout.
23% off
23% off
23% off
23% off
23% off
23% off
23% off
23% off
23% off
23% off
23% off
23% off
BONOMI 8E3210 WITH SERIES RB 3210 3-WAY BRASS NPT DIVERTER BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR - 1/2" BSP / 24V AC/DC / W/ THREE POSITION ON/OFF FAIL IN PLACE
Shipping Weight:
6.03 lb
Technical Description
Delivery and Shipping
Delivery and Shipping
Usually ships within a week. We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI 8E3210 WITH SERIES RB 3210 3-WAY BRASS NPT DIVERTER BALL VAL...
From
$58706 USD
$76100
Unit price
/
Unavailable
Description
Description

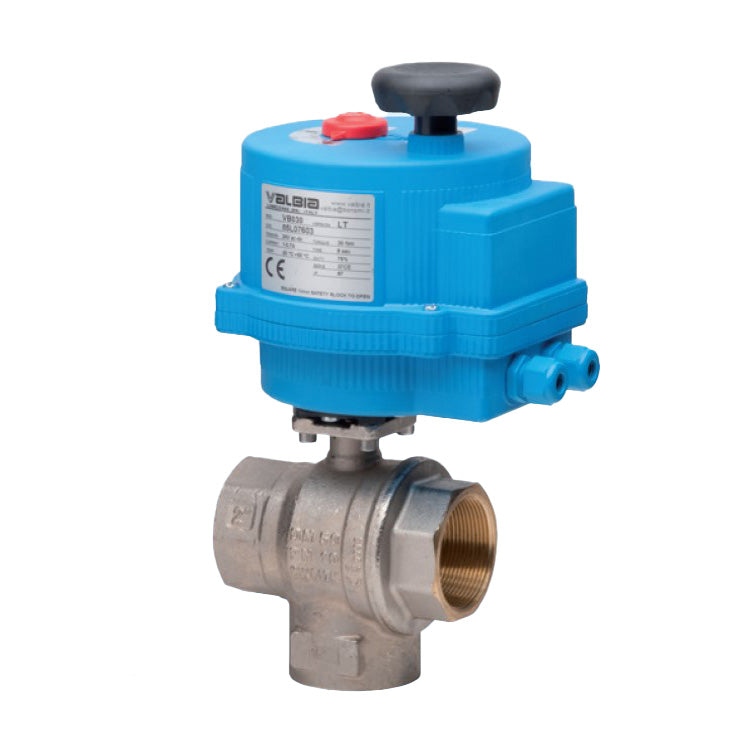

The 8E3210 electric actuated brass package features the RB 3210L L-ported nickel-plated forged brass body designed to accept flow through a bottom inlet port and redirect it out to one of the other outlet ports. The 3210L is made with BSP threads and is compatible with male NPT threads.
The Valbia VB series actuator housing is made from a high impact resistant technopolymer, and standardly features dual voltages, two extra limit switches, a heater & thermostat, a torque limiter, dual ISO patterns, female star drive, position indicator, PG11 connections, and a 75% duty cycle motor. The actuator is also NEMA 4,4X rated.
Options include positioning boards, battery
backups, or a combination of the two.
The Valbia VB series actuator housing is made from a high impact resistant technopolymer, and standardly features dual voltages, two extra limit switches, a heater & thermostat, a torque limiter, dual ISO patterns, female star drive, position indicator, PG11 connections, and a 75% duty cycle motor. The actuator is also NEMA 4,4X rated.
Options include positioning boards, battery
backups, or a combination of the two.
Specifications and Data Sheet
Specifications and Data Sheet
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
