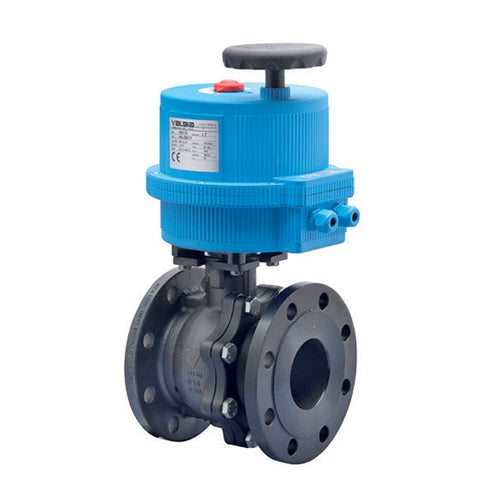

BONOMI 8E766001 WITH SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 F

Elevate your systems with the impressive BONOMI 8E766001 Series 766001: A fusion of power and precision, featuring a 2-Way ANSI 150 Carbon Steel Split-Body Flanged Ball Valve and Plastic Valbia Electric Actuator. Designed for Water, Gas, and Oil applications, this dynamic combination guarantees unparalleled performance. Discover its features: Carbon Steel ANSI class 150 flanged construction, direct mount ISO 5211/square stem integration, spanning sizes from 1” to 4”, performing seamlessly from -4°F to 400°F. Count on reliability with a blow-out proof stem, adjustable stem packing, and P.T.F.E. seats, packing, thrust washer, and FKM Viton O-rings. Safety is paramount with Fire Safe certification compliant with API 607 6th edition, alongside rigorous 100% testing, and ANSI B16.5, B16.10, B16.34 design standards. Enhance security with an antistatic device. On the actuator front, experience consistent performance with NEMA 4, 4x Housing, CSA, and UL approvals, available in 12V/24V AC/DC and 100-240VA AC Models. The actuator boasts ISO dual patterns and a high-strength, impact-resistant IP67 Technopolymer housing, ensuring robustness from -4°F to 131°F. Complete the package with the PG11 Electrical connection or the optional 1/2" conduit. Elevate your systems with the BONOMI 8E766001 Series 766001 - where precision engineering meets unmatched power, transforming your performance. Seize the future now!

Assembly Description

BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-002, 24V AC/DC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-002, 24V AC/DC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-002, 24V AC/DC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-002, 24V AC/DC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-002, 24V AC/DC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-003, 100-240V AC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-003, 100-240V AC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-003, 100-240V AC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-003, 100-240V AC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-003, 100-240V AC ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-012, 24V AC/DC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-012, 24V AC/DC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-012, 24V AC/DC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-012, 24V AC/DC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-012, 24V AC/DC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-013, 100-240V AC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-013, 100-240V AC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-013, 100-240V AC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-013, 100-240V AC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-013, 100-240V AC ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-022, 24V AC/DC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-022, 24V AC/DC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-022, 24V AC/DC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-022, 24V AC/DC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-022, 24V AC/DC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-023, 100-240V AC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-023, 100-240V AC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-023, 100-240V AC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-023, 100-240V AC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-023, 100-240V AC MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-042, 24V AC/DC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-042, 24V AC/DC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-042, 24V AC/DC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-042, 24V AC/DC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-042, 24V AC/DC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB030-043, 100-240V AC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-043, 100-240V AC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB060-043, 100-240V AC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB110-043, 100-240V AC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI 8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB190-043, 100-240V AC MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

285 PSI
Valve Body Type

SPLIT BODY
Approvals

FIRE SAFE CERTIFIED TO API 607-6TH ED.
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Technopolymer
