BONOMI  |  SKU: 8E864LF-002-1/4

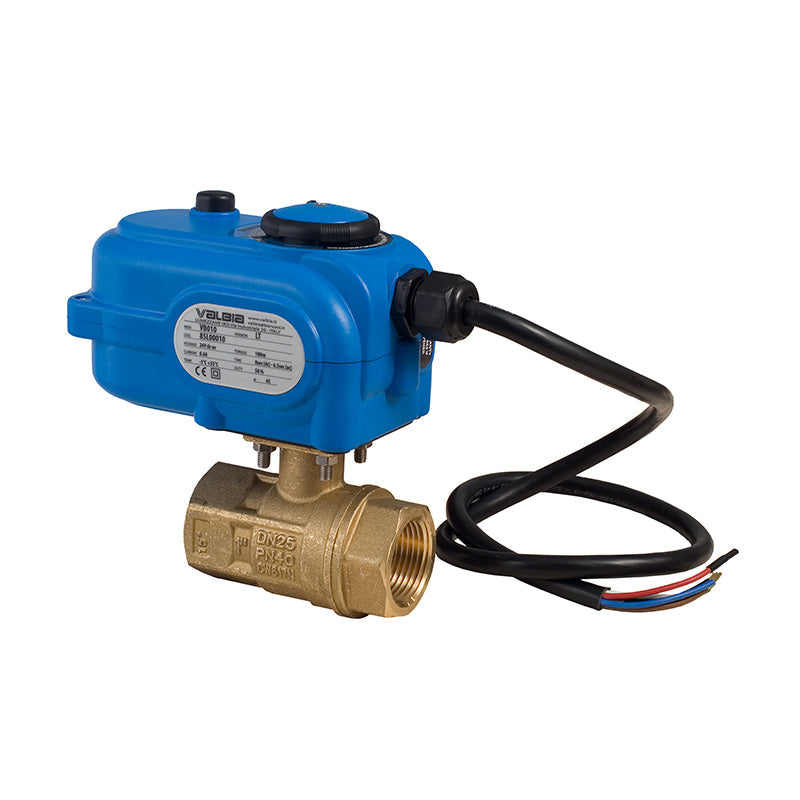

BONOMI 8E864LF WITH SERIES 250NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

$23837 USD $30900
Shipping calculated at checkout.
Size
Voltage
Actuator Action

BONOMI 8E864LF WITH SERIES 250NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR - 1/4" NPT / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:
2.11 lb

Technical Description

BONOMI 8E864LF WITH SERIES 250NLF, 1/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR

Delivery and Shipping

Usually ships within a week. We will notify you if lead time is extended.

Contact us if you have any questions.

Please contact us if you need assistance selecting your valve assembly.

Description

Introducing the BONOMI 8E864LF with Series 250NLF 2-Way Lead Free Brass NPT Ball Valve and Plastic Valbia Electric Actuator. This assembly is designed for direct mount applications and is ideal for drinking water systems.

The valve features a lead-free brass construction, full port sizes from 1/4” to 4”, ISO 5211 pad and square stem, pressure rating up to 600 WOG, low torque design with back up O-ring, and double O-ring stem seal design for extended cycle life. It is 100% electronically tested in the open and closed position at 80psi.

The electric actuator is available in 24V AC/DC and 100-240V AC models, with a 120VAC 75% duty cycle and 8 sec. cycle time, and a 24V AC/DC 50% duty cycle with 6.5 sec. cycle time. It features a high-strength, impact resistant IP65 technopolymer housing, one auxiliary SDPT contact on closed, temperature range from 23°F to 131°F, ISO 5211 F03/F05 base with 11mm female drive, anti-condensation heater, quiet operation with LED light in open position, and output torque of 89 in. lbs.

Experience the power and reliability of the BONOMI 8E864LF with Series 250NLF 2-Way Lead Free Brass NPT Ball Valve and Plastic Valbia Electric Actuator.

Specifications and Data Sheet
  • Data Sheet
    nullDownload
  • Valve Type
    BALL VALVE
  • Temperature Rating
    -4 °F to 366 °F
  • Pressure Rating
    600 WOG
  • Valve Body Type
    2-PIECE
  • Approvals
    NSF 61/372
  • Valve Body Configuration
    2-WAY
  • Valve Connection Type
    FNPT
  • Body Material
    LF BRASS
  • Actuator Housing Material
    Technopolymer
