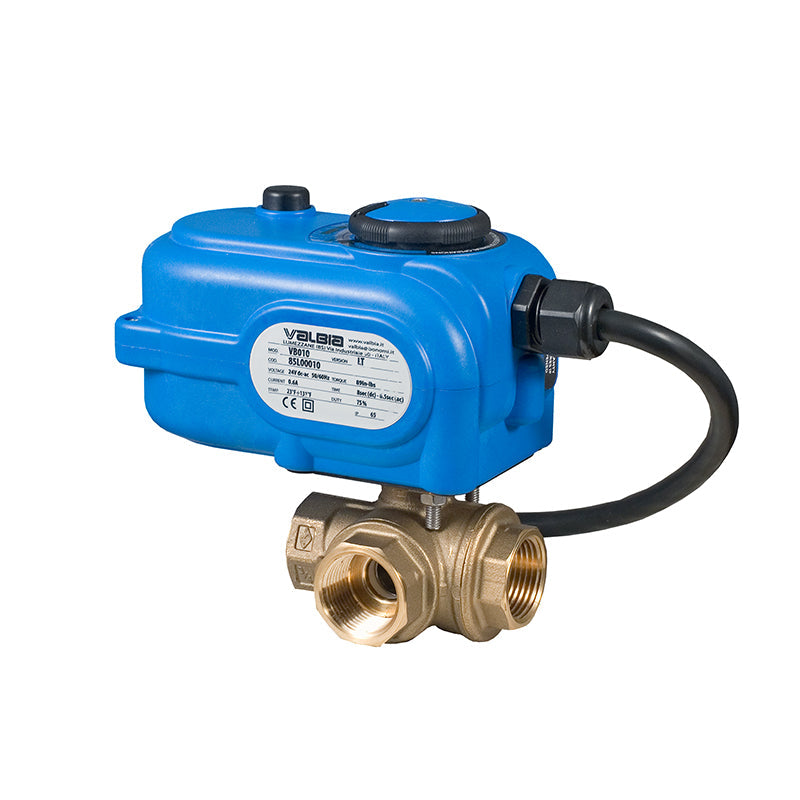

BONOMI 8E865 WITH SERIES RB 355N 3-WAY BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

Upgrade your system effortlessly with the exceptional BONOMI 8E865, a Brass 3-way T-Port NPT ball valve paired with the high-performance Plastic Valbia electric actuator. Elevate your operations with this duo designed for non-potable water, gas, and oil applications. With a direct mount T-Port design and standard sizes from 1/4” to 3”, this valve offers ISO 5211 pad and square stem compatibility, a pressure rating up to 400 WOG, and a temperature range spanning from -4°F to 366°F. Its four-seat design, blow-out proof stem, and chrome plated brass ball assure top-notch performance. Featuring a low torque design, double o-ring stem seal, and 100% electronic testing at 80 Psi, its reliability stands unmatched. Equipped with model options for 24V AC/DC and 100-240V AC inputs, the actuator thrives with an impact-resistant IP65 Technopolymer housing, an auxiliary SDPT contact on closed position, and quiet operation with an LED light in open position. Boasting an output torque of 89 in. lbs. and a 30" pigtail for swift installation, this duo offers efficiency like no other. With absorbed current specifications carefully considered for 120V AC and 24V AC/DC, this duo encapsulates innovation and resilience for industrial environments – order now and experience excellence firsthand.
