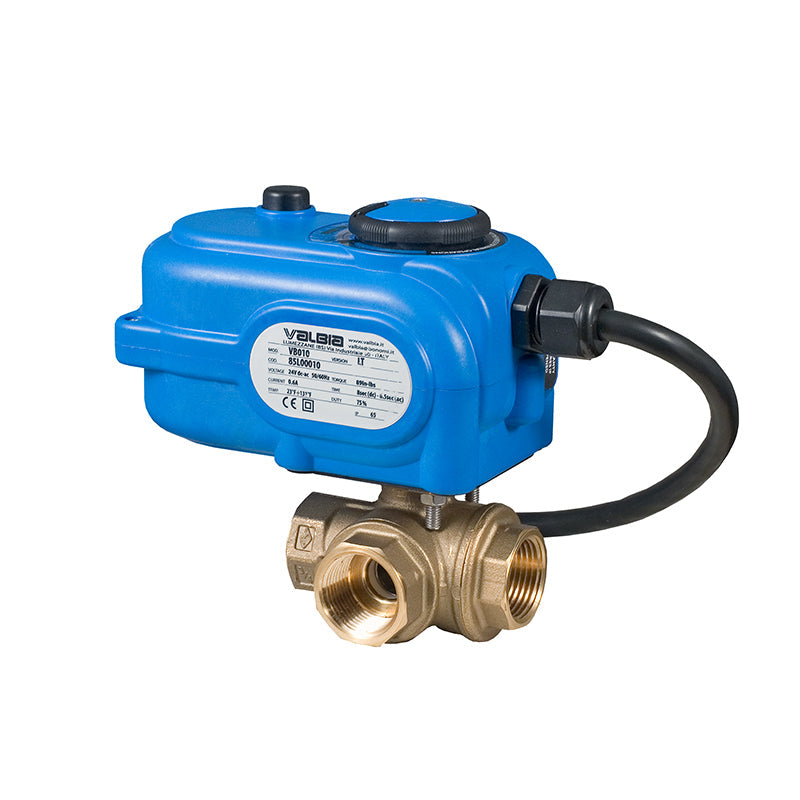

BONOMI 8E865LF WITH SERIES RB 355NLF 3-WAY LEAD FREE BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

Introducing the BONOMI 8E865LF with Series RB 355NLF 3-Way Lead Free Brass NPT Ball Valve and Plastic Valbia Electric Actuator. This assembly is designed for direct mount T-ported 3-way applications and is perfect for drinking water.

The valve features a standard lead-free brass T-port, sizes 1/4” to 3”, ISO 5211 pad and square stem, pressure rating to 400 WOG, temperature range -4°F to 366°F, four (4) seat design for sealing between pressured ports, blow-out proof stem, T.E.A. coated LF brass ball, low torque design with back up o-ring seats, and double o-ring stem seal design for extended cycle life.

The electric actuator is available in 24V AC/DC & 100-240V AC models, 120VAC - 75% Duty Cycle w 8 sec. cycle time, 24V AC/DC - 50% Duty Cycle with 6.5 sec. cycle time, high-strength, impact resistant IP65 Technopolymer housing, one auxiliary SDPT contact on closed, temperature range 23°F to 131°F, ISO 5211, F03/F05 base with 11mm female drive, anti-condensation heater, quiet operation w/ LED light in open position, output torque 89 in. lbs., and 100% electronically tested in the open and closed position @ 80 Psi.

This stylish and attractive e-commerce store offers the BONOMI 8E865LF with Series RB 355NLF 3-Way Lead Free Brass NPT Ball Valve and Plastic Valbia Electric Actuator. Shop now and get the perfect solution for your drinking water needs!
