BONOMI | SKU: 8E867-002-1/4

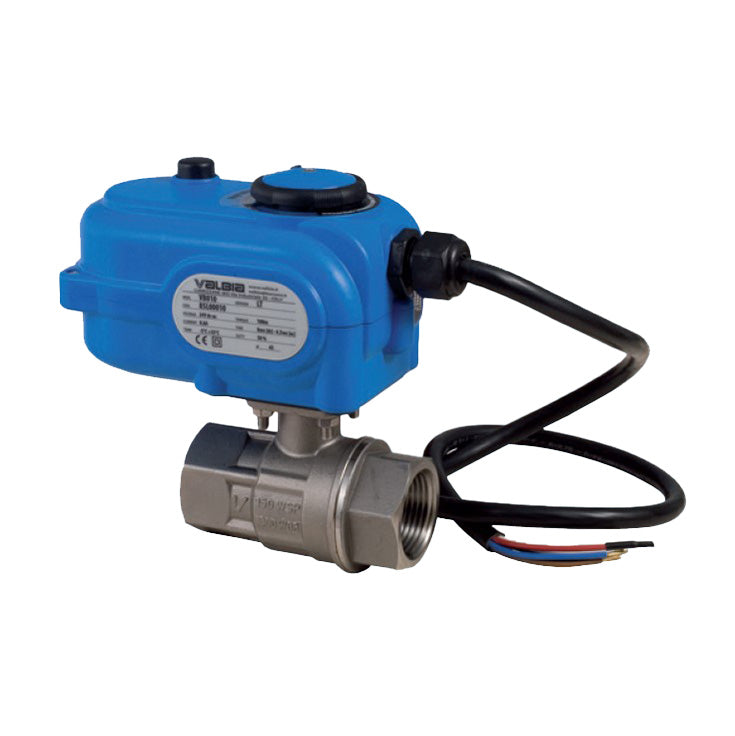

BONOMI 8E867 WITH SERIES 700076 2-WAY ST. ST. BODY 2-PIECE NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

$305⁵¹ USD ~~$392³⁸~~

Shipping calculated at checkout.

Size

1/4" NPT 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1-1/4" NPT

Voltage

24V AC/DC 110V AC

Actuator Action

ON/OFF FAIL IN PLACE

Product variants

BONOMI 8E867 WITH SERIES 700076 2-WAY ST. ST. BODY 2-PIECE NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR - 1/4" NPT / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:

5.34 lb

Delivery and Shipping

*** Due to high order volume, orders may require additional business days to process.

Order processing time for manual valves and actuators is 5-7 business days + Transit time.

Most valves assemblies have a processing time of 10-15 days + transit time.

Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.

All processing times are subject to availability.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

The BONOMI 8E867 with Series 700076 2-Way Stainless Steel NPT Ball Valve and Plastic Valbia Electric Actuator elevates industrial systems. This assembly accommodates sizes from 1/4” to 3” with a full port and 1000 psi/150 psi pressure rating for hot water, steam, oil, and gas. It operates -4°F to 366°F with blow-out proof stem, O-ring seats, and stem packing. ISO 5211 mounting pad, ANSI B1.20.1 connections, 24V AC/DC & 110 AC models, 89 in. lbs. torque, IP65 Technopolymer housing, LED light, and 30" pigtail provide unmatched versatility and efficiency.

Assembly Description

BONOMI 8E867 WITH SERIES 700076, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E867 WITH SERIES 700076, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 366 °F
Pressure Rating

1000 PSI
Valve Body Type

2-PIECE
Approvals

NSF 61/372
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Technopolymer
