BONOMI | SKU: 8E868-002-1/4

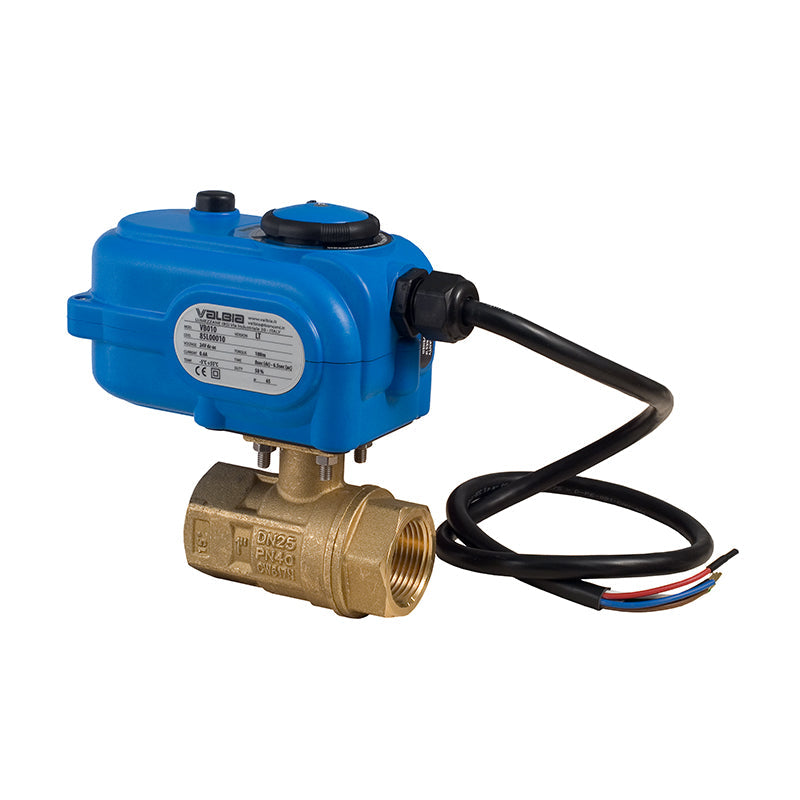

BONOMI 8E868 WITH SERIES 253N 2-WAY BRASS (ST. ST. BALL AND STEM) NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

$291⁹⁸ USD ~~$378⁴⁹~~

Shipping calculated at checkout.

Size

1/4" NPT 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1-1/4" NPT

Voltage

24V AC/DC 110V AC

Actuator Action

ON/OFF FAIL IN PLACE

Product variants

BONOMI 8E868 WITH SERIES 253N 2-WAY BRASS (ST. ST. BALL AND STEM) NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR - 1/4" NPT / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:

2.46 lb

Delivery and Shipping

*** Due to high order volume, orders may require additional business days to process.

Order processing time for manual valves and actuators is 5-7 business days + Transit time.

Most valves assemblies have a processing time of 10-15 days + transit time.

Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.

All processing times are subject to availability.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

Introducing the BONOMI 8E868 & Series 253N, a powerful assembly of 2-Way Brass NPT Ball Valve & Valbia Plastic Electric Actuator for versatile applications in non-potable water, gas, & oil systems. This full port valve boasts precision-crafted stainless steel trim & ISO 5211 pad & square stem. With sizes ranging from 1/4" to 4", it has a 600 WOG pressure rating & low torque design, plus a double O-ring stem seal for extended cycle life. Tested at 80psi in both open & closed positions. The Valbia Actuator adds control & comes in 24V AC/DC & 100-240V AC models. 120VAC has 75% Duty Cycle & 8-sec cycle time, 24V AC/DC has 50% Duty Cycle & 6.5-sec cycle time. Its high-strength, IP65 Technopolymer housing ensures durability & comes with auxiliary SDPT contact on closed.

Assembly Description

BONOMI 8E868 WITH SERIES 253N, 1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 3/8" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 3/8" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 3/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 3/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1-1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI 8E868 WITH SERIES 253N, 1-1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND PLASTIC VALBIA VB010-003, 110V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

600 WOG
Valve Body Type

2-PIECE
Approvals

Not for Potable Water
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

BRASS
Actuator Housing Material

Technopolymer
