BONOMI 8P68J401 WITH SERIES 68J401 API 608 2-WAY ST. ST. ANSI CLASS 600 FLANGED SPLIT BODY FIRE SAFE DESIGN BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI 8P68J401 WITH SERIES 68J401 API 608 2-WAY ST. ST. ANSI CLASS 600 FLANGED SPLIT BODY FIRE SAFE DESIGN BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/2" ANSI 600 FLANGED / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI 8P68J401 WITH SERIES 68J401 API 608 2-WAY ST. ST. ANSI CLASS...

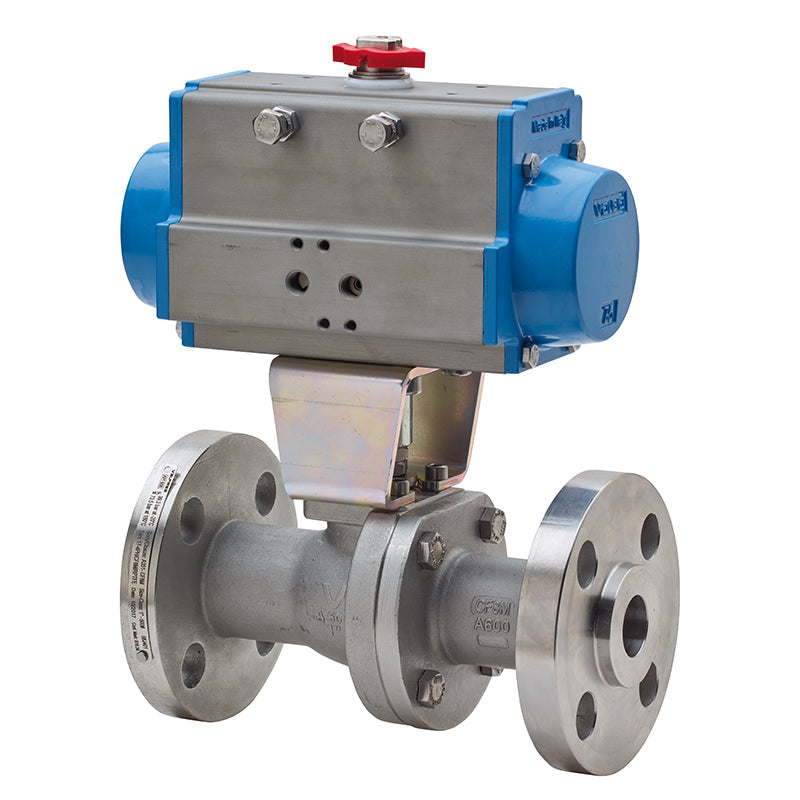

The BONOMI 8P68J401 WITH SERIES 68J401 API 608 2-WAY ST. ST. ANSI CLASS 600 FLANGED SPLIT BODY FIRE SAFE DESIGN BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a unique assembly that combines a 2-way, ANSI 600 Stainless Steel API 608 Split-Body Style Flanged Ball Valve and Actuator. It is designed for applications such as water, gas, and oil. The valve has a full port, sizes 1/2” to 2”, and a temperature range of -4°F to 366°F. It is 100% tested according to API 598 standards, and features a blow out proof stem, locking handle, fire safe design, R.T.F.E. seats, packing and thrust washer, and an antistatic device.
The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F, and no lubrication maintenance is required for the entire actuator lifetime. It is 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
