BONOMI 8P720744 WITH SERIES 720744 2-WAY CARBON STEEL ANSI CLASS 300 F

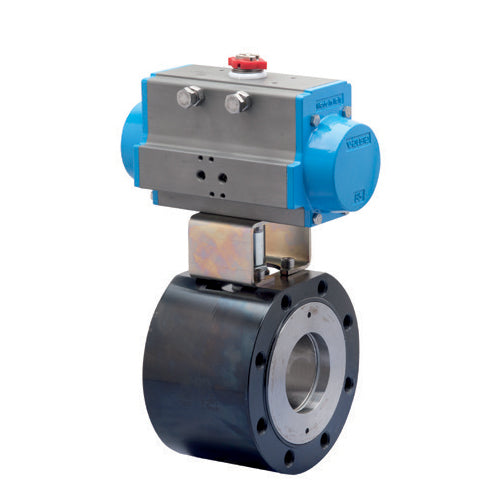

The BONOMI 8P720744 WITH SERIES 720744 2-WAY CARBON STEEL ANSI CLASS 300 FIRE SAFE DESIGN WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for water, gas, and oil applications. It features a carbon steel ANSI 300 full port, sizes 1/2” to 6”, and a temperature range of -4°F to 366°F. It is fire-safe approved with an anti-static stem device and a blow out proof stem design. It also has R.P.T.F.E. seats, packing, and thrust washer, and a space saving design.

The actuator features a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F and requires no lubrication maintenance for the entire actuator lifetime. It is also 100% factory tested.

Assembly Description

BONOMI 8P720744 WITH SERIES 720744, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 1-1/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75B DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 2-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720744 WITH SERIES 720744, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 1-1/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 2-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720746 WITH SERIES 720744, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR230V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

740 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
