BONOMI | SKU: 8P724101-1

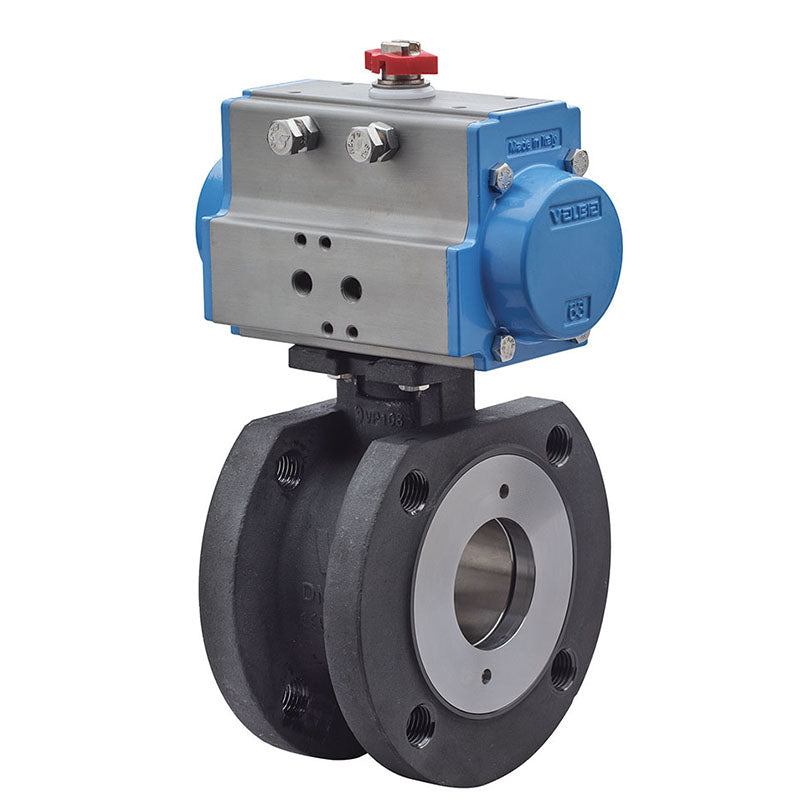

BONOMI 8P724101 WITH SERIES 724101 CARBON STEEL ANSI CLASS 150 BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

$431³³ USD ~~$559¹⁴~~

Shipping calculated at checkout.

Size

1" ANSI CLASS 150 FLANGED WAFER STYLE 1-1/4" ANSI CLASS 150 FLANGED WAFER STYLE 1-1/2" ANSI CLASS 150 FLANGED WAFER STYLE 2" ANSI CLASS 150 FLANGED WAFER STYLE 2-1/2" ANSI CLASS 150 FLANGED WAFER STYLE 3" ANSI CLASS 150 FLANGED WAFER STYLE 4" ANSI CLASS 150 FLANGED WAFER STYLE

Actuator Action

DOUBLE ACTING SPRING RETURN

Product variants

BONOMI 8P724101 WITH SERIES 724101 CARBON STEEL ANSI CLASS 150 BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1" ANSI CLASS 150 FLANGED WAFER STYLE / DOUBLE ACTING

Shipping Weight:

7.81 lb

Delivery and Shipping

Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.

Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

The BONOMI 8P724101 WITH SERIES 724101 CARBON STEEL ANSI CLASS 150 BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount 2-way, ANSI 150 Carbon Steel Wafer-style Flanged Ball Valve and Pneumatic Actuator. It is suitable for water, gas, and oil applications. The valve has a carbon steel direct mount ANSI 150 full port, sizes 1” to 4”, a temperature range of -4°F to 366°F, an antistatic stem device, dual O-rings FKM Viton, dual P.T.F.E. seats, and an ISO 5211 mounting pad/square stem. The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, a minimum air pressure rating of 80 psi, and a maximum air pressure rating of 116 psi. It also has a working temperature of -4°F - 302°F and requires no lubrication maintenance for the entire actuator lifetime.

The BONOMI 8P724101 WITH SERIES 724101 CARBON STEEL ANSI CLASS 150 BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a reliable and durable product that is 100% factory tested. It is designed for easy installation and maintenance, and is suitable for a wide range of applications. It is a great choice for those looking for a high-quality, long-lasting valve and actuator assembly.

Assembly Description

BONOMI 8P724101 WITH SERIES 724101, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724101 WITH SERIES 724101, 1-1/4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724101 WITH SERIES 724101, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724101 WITH SERIES 724101, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724101 WITH SERIES 724101, 2-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724101 WITH SERIES 724101, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724101 WITH SERIES 724101, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 1-1/4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 2-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P724103 WITH SERIES 724101, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

285 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
