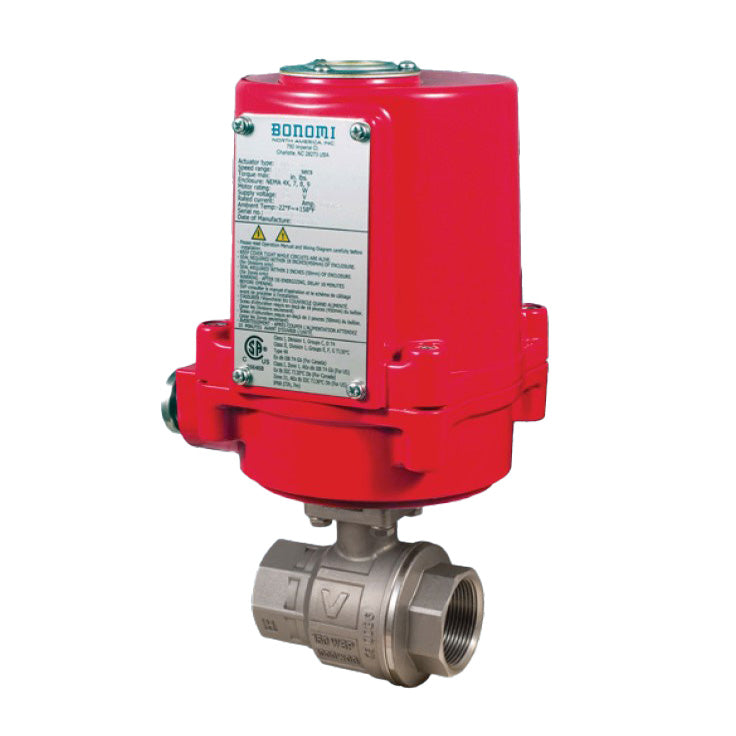

BONOMI EXM8E067 WITH SERIES 700076 2-WAY ST. ST. BODY 2-PIECE NPT BALL

Introducing the BONOMI EXM8E067 WITH SERIES 700076 2-WAY ST. ST. BODY 2-PIECE NPT BALL VALVE AND VALBIA CSA APPROVED EXPLOSION ELECTRIC ACTUATOR from Bonomi Valves. This stylish and attractive product is perfect for hot water, steam, oil, and gas applications.

The valve features a full port, sizes 1/4” to 3”; pressure rating 1000 psi, 150 psi steam; temperature range -4°F to 366°F; blow out proof stem; P.T.F.E. seats with O-ring backing for low operating torque; P.T.F.E. seats and double O-ring stem packing; 100% electronically tested in the open and closed position at 80 psi; ISO 5211 mounting pad/square stem; ANSI B1.20.1 connections.

The electric actuator is NEMA 4x, 7, 8 & 9 (CSA Approved); enclosure conforms to IP68 with explosion-protected performance and 1/2” FNPT conduit connection; temperature range: 22°F to 158°F; clutch-less manual override; thermostatically controlled anti-condensation heater for working conditions; self-locking gear system; available in both ON/OFF (00*) or 4~20 mA MODULATING (02*); 30% duty cycle (ON/OFF) and 75% duty cycle (MODULATING); ISO 5211 mounting bolt pattern and DIN 3337 double square drive; ± 5° mechanical stop on 0° and 90°; continuous mechanical position indicator; built-in thermal overload protection prevents motor burnout; 2 auxiliary SPDT switches.

This product is perfect for any application requiring a reliable and stylish solution. Get yours today from

Assembly Description

BONOMI EXM8E067 WITH SERIES 700076, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 24V AC/DC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC, CSA APPROVED EXPLOSION ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E067 WITH SERIES 700076, 3" NPT, DIRECT MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC, CSA APPROVED EXPLOSION MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

1000 PSI
Valve Body Type

2-PIECE
Approvals

NSF 61/372
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Aluminum
