BONOMI EXM8E068 WITH SERIES 253N 2-WAY BRASS (ST. ST. BALL AND STEM) N

PRODUCT NOT AVAILABLE. PLEASE SEE REPLACEMENT EXM8E068

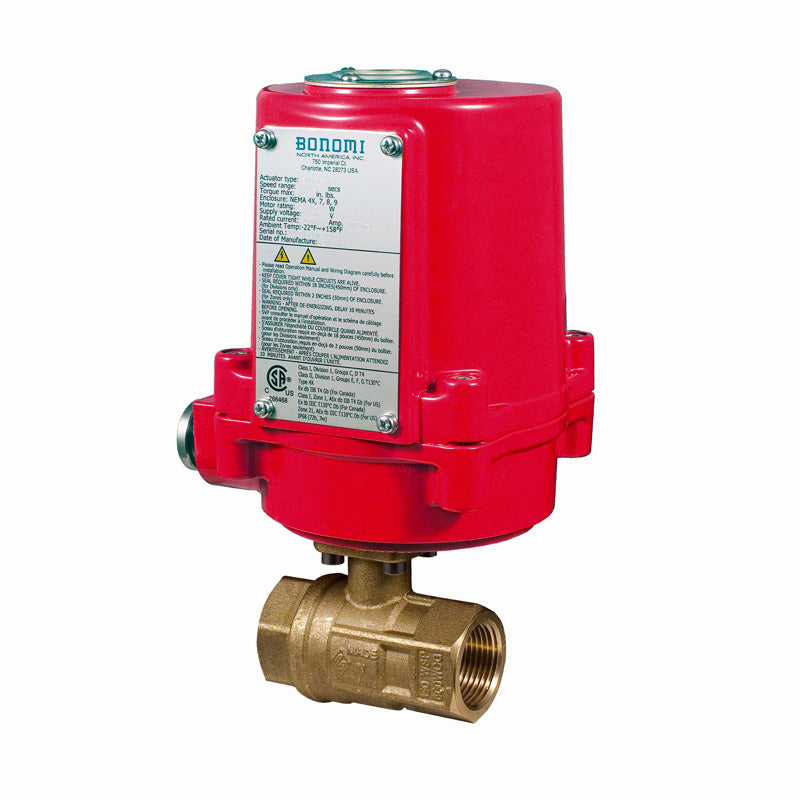

The BONOMI EXM8E068 WITH SERIES 253N 2-WAY BRASS (ST. ST. BALL AND STEM) NPT BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR is a direct mount 2-way, brass with stainless steel trim NPT ball valve with Ex-Proof electric actuator. It is suitable for non-potable water, gas, and oil applications. The valve has a brass body with stainless steel trim, full port, sizes 1/4” to 4”, ISO 5211 pad and square stem, and pressure rating to 600 WOG. It also has a low torque design with back up O-ring and double O-ring stem seal design for extended cycle life. The actuator has NEMA 4x, 7, 8 & 9 (CSA Approved) enclosure, IP68 with explosion-protected performance, 1/2” FNPT conduit connection, temperature range of 22°F to 158°F, clutch-less manual override, thermostatically controlled anti-condensation heater, self-locking gear system, and more.

The actuator also has ISO 5211 mounting bolt pattern and DIN 3337 double square drive, ± 5° mechanical stop on 0° and 90°, continuous mechanical position indicator, built-in thermal overload protection to prevent motor burnout, and 2 auxiliary SPDT switches. It is available in both ON/OFF (00*) or 4~20 mA MODULATING (02*) and has 30% Duty Cycle (ON/OFF) and 75% Duty Cycle (MODULATING).

Assembly Description

BONOMI EXM8E068 WITH SERIES 253N, 1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/8" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/8" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/8" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/8" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 3/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/4" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 1-1/2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E068 WITH SERIES 253N, 2" NPT, DIRECT MOUNT, BRASS (ST. ST. BALL AND STEM), FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

600 WOG
Valve Body Type

2-PIECE
Approvals

Not for Potable Water
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

BRASS
Actuator Housing Material

Aluminum
