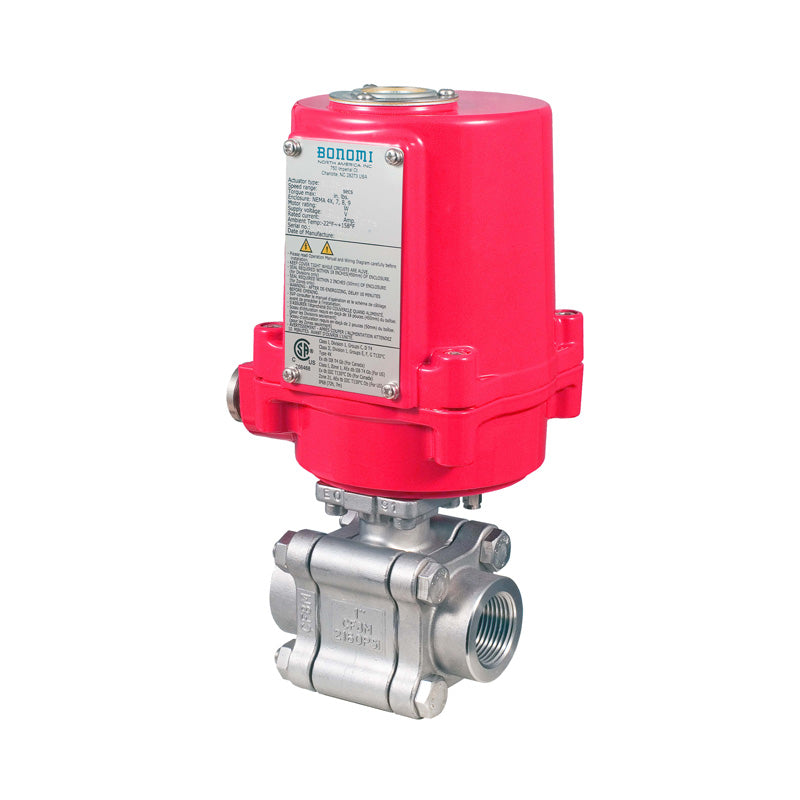

BONOMI EXM8E0740H WITH SERIES 740H 2-WAY ST. ST. BODY 3-PIECE NPT BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR
BONOMI EXM8E0740H WITH SERIES 740H 2-WAY ST. ST. BODY 3-PIECE NPT BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR - 1/4" NPT / 24V AC/DC / ON/OFF FAIL IN PLACE
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
*** Due to high order volume, orders may require additional business days to process.
Order processing time for manual valves and actuators is 5-7 business days + Transit time.
Most valves assemblies have a processing time of 10-15 days + transit time.
Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.
All processing times are subject to availability.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI EXM8E0740H WITH SERIES 740H 2-WAY ST. ST. BODY 3-PIECE NPT B...
The BONOMI EXM8E0740H is a direct mount 2-way, 3 pc. high pressure to 3600 psi stainless steel ball valve with PEEK seats and encapsulated bolts and NPT ends with metal electric actuator with fail-safe battery backup. It is suitable for high temperature and high pressure applications.
The valve's specifications include a 3-piece stainless steel body, NPT, sizes 1/4” to 1, high pressure to 3600 psi, high temperature to 500°F max, ISO 5211 mounting pad w/ square stem, PEEK-4215 ball seats, standard latch locking handle, and conformance to ANSI 16.34, ANSI B1.20.1 thread depths, NACE MR0175, and API 607-6th edition. It also features a grounded ball and stem, standard 316 stainless steel ball and stem, temperature range of -50° F to 550° F, and working steam pressure to 250 psi.
The actuator's specifications include NEMA 4x, 7, 8 & 9 (CSA Approved) enclosure, IP68 with explosion-protected performance and 1/2” FNPT conduit connection, temperature range of 22°F to 158°F, clutch-less manual override, thermostatically controlled anti-condensation heater for working conditions, self-locking gear system, available in both ON/OFF (00*) or 4~20 mA MODULATING (02*), 30% Duty Cycle (ON/OFF) and 75% Duty Cycle (MODULATING), ISO 5211 Mounting Bolt Pattern and DIN 3337 Double Square Drive, ± 5° Mechanical stop on 0° and 90°, continuous mechanical position indicator, built-in thermal overload protection to prevent motor burnout, and 2 auxiliary SPDT switches.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
