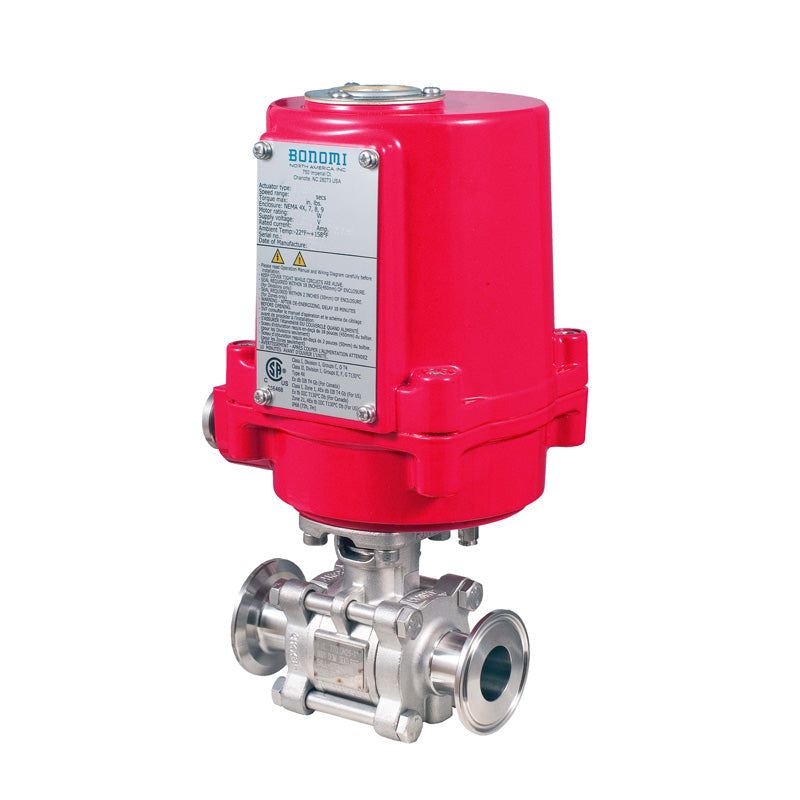

BONOMI EXM8E0770 WITH SERIES 770 2-WAY ST. ST. BODY 3-PIECE SANITARY T

The BONOMI EXM8E0770 WITH SERIES 770 2-WAY ST. ST. BODY 3-PIECE SANITARY TRI-CLAMP NON-CAVITY FILLED BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR is an innovative assembly designed for hot water, steam, oil, and gas applications. It features a non-cavity filled stainless steel ball valve with sanitary ends and an ex-proof electric actuator.

The valve's specifications include a working pressure of 1000 psi WOG (1/2” to 2”) and 800 psi WOG (2-1/2” to 4”), a temperature range of -20°F to 450°F, a blowout proof stem design, ISO 5211 direct mount/square stem, an anti-static device, and international polishing to Ra 15 micron. The actuator's specifications include NEMA 4x, 7, 8 & 9 (CSA Approved) enclosure, IP68 with explosion-protected performance, a temperature range of 22°F to 158°F, a clutch-less manual override, a thermostatically controlled anti-condensation heater, a self-locking gear system, and more.

Assembly Description

BONOMI EXM8E0770 WITH SERIES 770, 1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3/4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3/4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3/4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3/4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 1-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 2-1/2" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 3" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0770 WITH SERIES 770, 4" SANITARY TRI-CLAMP, NON-CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 450 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

Sanitary Tri-Clamp Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Aluminum
