BONOMI EXM8E0771 WITH SERIES 771 2-WAY ST. ST. BODY 3-PIECE SANITARY T

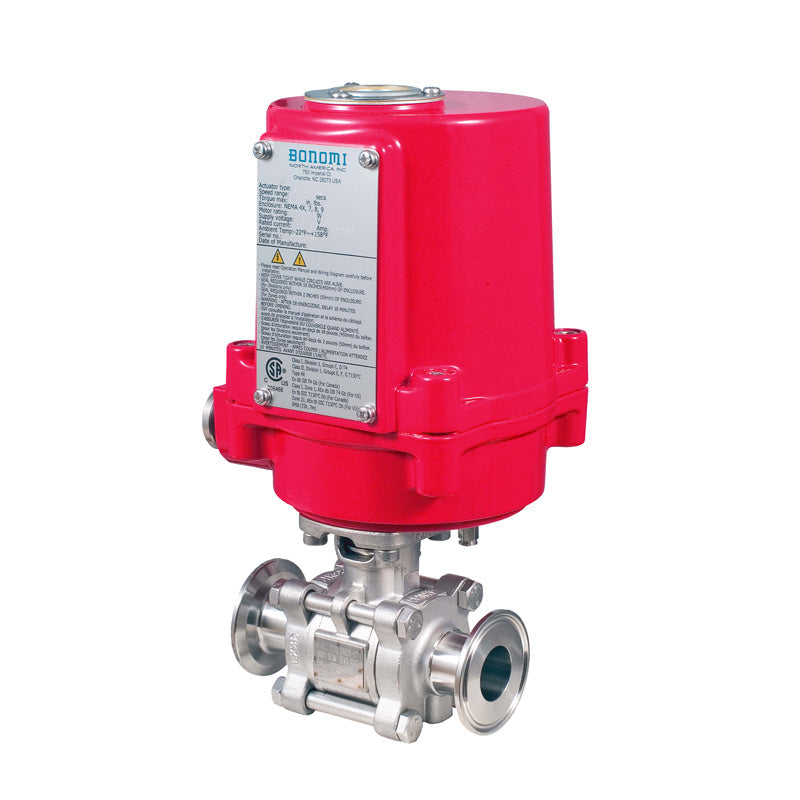

The BONOMI EXM8E0771 WITH SERIES 771 2-WAY ST. ST. BODY 3-PIECE SANITARY TRI-CLAMP CAVITY FILLED BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR is a direct mount 2-way, cavity-filled stainless steel ball valve with sanitary ends and an ex-proof electric actuator. It is suitable for food and beverage, bio-tech, and pharmaceutical applications.

The valve's specifications include a cavity filled design, working pressure of 1000 psi WOG (1/2” to 2”) and 800 psi WOG (2-1/2” to 4”), temperature range of -20°F to 450°F, blowout proof stem design, ISO 5211 direct mount/square stem, anti-static device, international polishing to Ra 15 micron, and tri-clamp style end connection. It complies with standards ISO 5211, ANSI B16.11, MSS SP-25, and MSS SP-55.

The actuator's specifications include NEMA 4x, 7, 8 & 9 (CSA Approved) enclosure, IP68 with explosion-protected performance and 1/2” FNPT conduit connection, temperature range of 22°F to 158°F, clutch-less manual override, thermostatically controlled anti-condensation heater, self-locking gear system, ON/OFF (00*) or 4~20 mA MODULATING (02*) operation, 30% Duty Cycle (ON/OFF) and 75% Duty Cycle (MODULATING), ISO 5211 Mounting Bolt Pattern and DIN 3337 Double Square Drive, ± 5° Mechanical stop on 0° and 90°, continuous mechanical position indicator, and built-in thermal overload protection.

Assembly Description

BONOMI EXM8E0771 WITH SERIES 771, 1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3/4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-002, 24V AC/DC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3/4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-003, 100-240V AC, CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3/4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-022, 24V AC/DC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3/4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 1-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 2-1/2" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 3" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E0771 WITH SERIES 771, 4" SANITARY TRI-CLAMP, CAVITY FILLED, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-023, 100-240V AC, CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 450 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

Sanitary Tri-Clamp Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Aluminum
