BONOMI | SKU: EXM8E766000-002-1

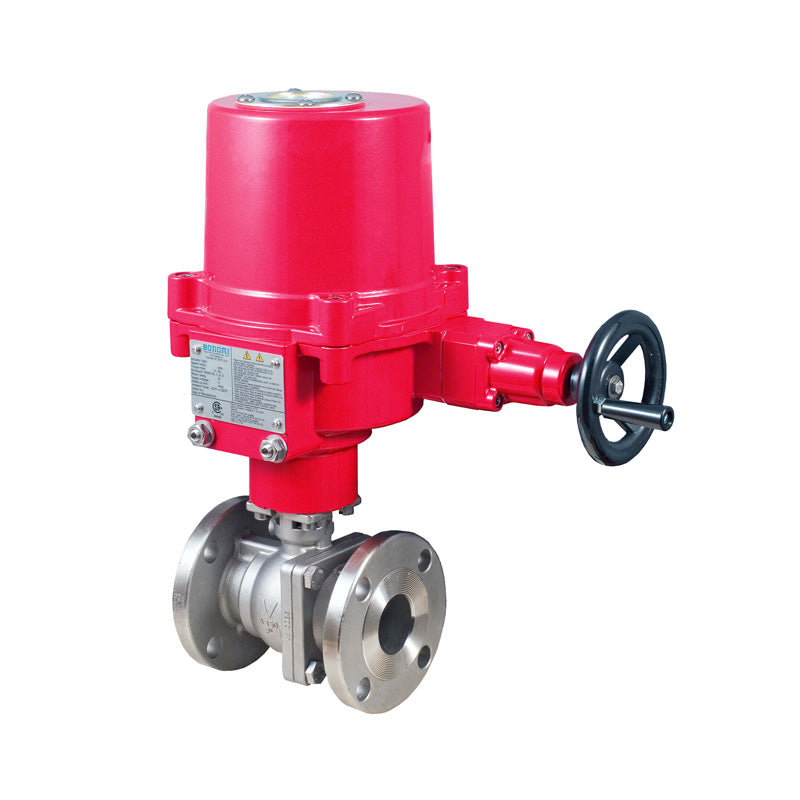

BONOMI EXM8E766000 WITH SERIES 766000 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR

$1,915⁸⁹ USD ~~$2,460⁶⁸~~

Shipping calculated at checkout.

Size

1" ANSI 150 FLANGED SPLIT BODY 1-1/2" ANSI 150 FLANGED SPLIT BODY 2" ANSI 150 FLANGED SPLIT BODY 3" ANSI 150 FLANGED SPLIT BODY 4" ANSI 150 FLANGED SPLIT BODY

Voltage

24V AC/DC 100-240V AC

Actuator Action

ON/OFF FAIL IN PLACE MODULATING 0-10VDC/4-20 mA FAIL IN PLACE

Product variants

BONOMI EXM8E766000 WITH SERIES 766000 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR - 1" ANSI 150 FLANGED SPLIT BODY / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:

12.84 lb

Delivery and Shipping

*** Due to high order volume, orders may require additional business days to process.

Order processing time for manual valves and actuators is 5-7 business days + Transit time.

Most valves assemblies have a processing time of 10-15 days + transit time.

Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.

All processing times are subject to availability.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

BONOMI EXM8E766000 WITH SERIES 766000 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR is a direct mount 2-way, ANSI 150 stainless steel split-body style flanged ball valve with Ex-Proof electric actuator. It is suitable for water, gas and oil applications.

The valve's specifications include stainless steel, ANSI class 150 flanged; direct mount ISO 5211/square stem; full port, sizes 1” to 4”; temperature range -4°F to 400°F; blow-out proof stem, adjustable stem packing; P.T.F.E. seats, packing and thrust washer and FKM Viton O-rings; fire safe certified to API 607 6th edition; 100% tested; ANSI B16.5, B16.10, B16.34 design; antistatic device.

The actuator's specifications include NEMA 4x, 7, 8 & 9 (CSA Approved); enclosure conforms to IP68 with explosion-protected performance and 1/2” FNPT conduit connection; temperature range: 22°F to 158°F; clutch-less manual override; thermostatically controlled anti-condensation heater for working conditions; self-locking gear system; available in both ON/OFF (00*) or 4~20 mA MODULATING (02*); 30% duty cycle (ON/OFF) and 75% duty cycle (MODULATING); ISO 5211 mounting bolt pattern and DIN 3337 double square drive; ± 5° mechanical stop on 0° and 90°; continuous mechanical position indicator; built-in thermal overload protection prevents motor burnout; 2 auxiliary SPDT switches.

Assembly Description

BONOMI EXM8E766000 WITH SERIES 766000, 1", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1-1/2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 3", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 4", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1-1/2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 3", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 4", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1-1/2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 3", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 4", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 1-1/2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 2", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 3", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766000 WITH SERIES 766000, 4", DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 366 °F
Pressure Rating

275 PSI
Valve Body Type

SPLIT BODY
Approvals

FIRE SAFE CERTIFIED TO API 607-6TH ED.
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Aluminum
