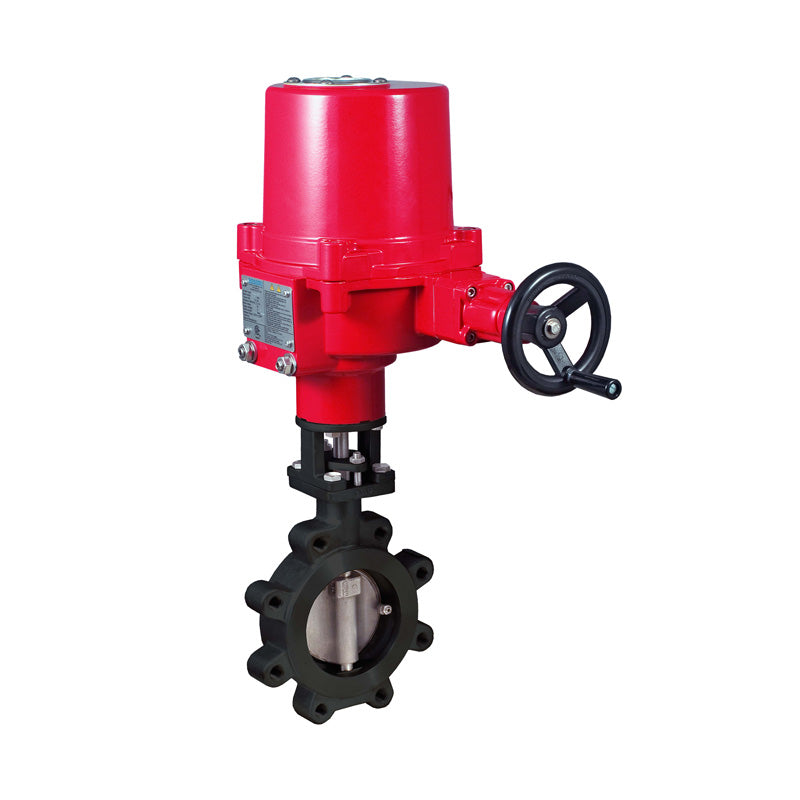

BONOMI EXME8121 WITH SERIES 8121 CARBON STEEL BODY ST. ST. DISC METAL SEATED SEATS LUG STYLE ANSI CLASS 150 HP BUTTERFLY VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR

Introducing the BONOMI EXME8121 WITH SERIES 8121 CARBON STEEL BODY ST. ST. DISC METAL SEATED SEATS LUG STYLE ANSI CLASS 150 HP BUTTERFLY VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR from bonomivalves.com.

This assembly is a 2-Way, Carbon Steel Lug-style High Performance Metal Seats Butterfly Valve with Ex-Proof Electric Actuator. It is suitable for applications such as Hot Water, Steam, Oil, and Gases. The valve's specifications include a Carbon steel ANSI 150 Lug style, sizes 2` to 12`, ISO 5211 direct mounting pad/square stem, Compact design, easy access to packing, Replaceable seat design, Multiple V-ring stem packing, Reliable and consistent torque, Metal seats, 150 WSP, and a Temperature range -20°F to 475°F.

The Actuator's Specifications include NEMA 4x, 7, 8 & 9 (CSA Approved), Enclosure conforms to IP68 with explosion-protected performance and 1/2” FNPT conduit connection, Temperature range: 22°F to 158°F, Clutch-less Manual Override, Thermostatically controlled anti-condensation heater for working conditions, Self-locking gear system, Available in both ON/OFF (00*) or 4~20 mA MODULATING (02*), 30% Duty Cycle (ON/OFF) and 75% Duty Cycle (MODULATING), ISO 5211 Mounting Bolt Pattern and DIN 3337 Double Square Drive, ± 5° Mechanical stop on 0° and 90°, Continuous mechanical position indicator, Built-in thermal overload protection prevents motor burnout, and 2 auxiliary SPDT switches.

For a reliable and stylish solution, look no further than the BONOMI EXME8121 WITH SERIES 8121 CARBON STEEL BODY ST. ST. DISC METAL SEATED SEATS LUG STYLE ANSI CLASS 150 HP BUTTERFLY VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR.
