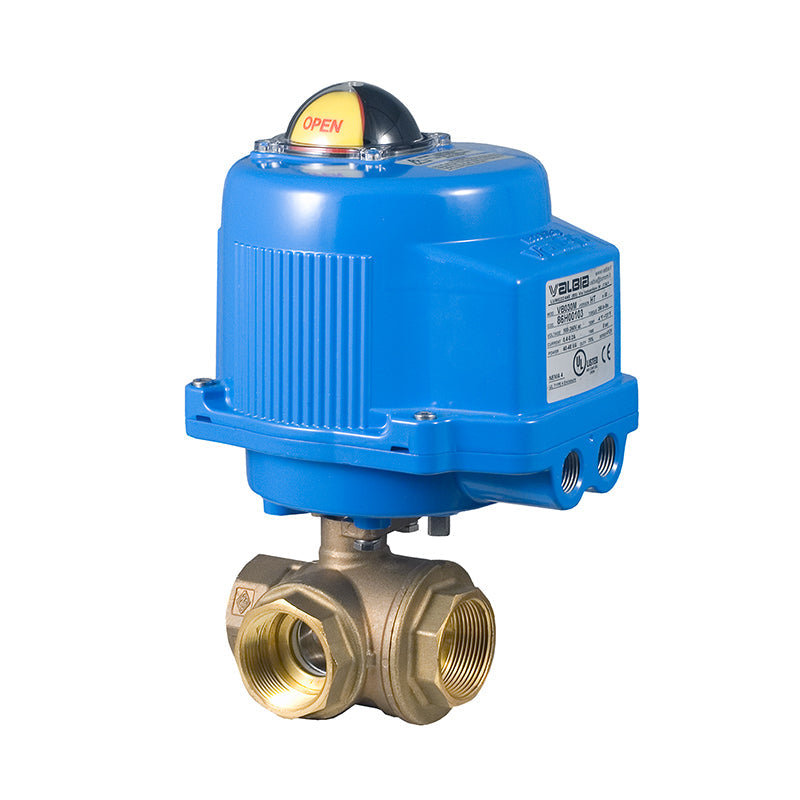

BONOMI M8E065LF WITH SERIES RB 355NLF 3-WAY LEAD FREE BRASS NPT BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR - 1/4" NPT / 24V AC/DC / ON/OFF FAIL IN PLACE
Shipping Weight:
8.58 lb
Technical Description
BONOMI M8E065LF WITH SERIES RB 355NLF, 1/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL T-PORT, 3-WAY BALL VALVE AND METAL VALBIA VB015M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
Delivery and Shipping
Usually ships within a week. We will notify you if lead time is extended.
The BONOMI M8E065LF with Series RB 355NLF 3-Way Lead Free Brass NPT Ball Valve and Metal Valbia Electric Actuator is a direct mount T-ported 3-way assembly. It is designed for drinking water applications and is lead-free brass NPT. It has a pressure rating of 400 WOG and a temperature range of -4°F to 366°F. It features a four seat design for sealing between pressured ports, a blow-out proof stem, and a low torque design with back up o-ring seats. The actuator is dual voltage, CSA and UL approved, and has a 24V AC/DC and 100-240V AC models available. It also has an ISO 5211 mounting, 75% duty cycle, anti-condensation heater, high-strength die cast aluminum housing, and a temperature range of -4°F to 131°F. It also has two auxiliary switches standard and a torque limiter standard.
It is tested and certified to ensure that it meets the highest standards of quality and performance. It is a great choice for any application that requires a reliable and efficient valve and actuator assembly.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Testimonials
Great Support, quick delivery!
★★★★★
Customer
Roger
Great selection and availability
★★★★★
Customer
Mario
Bonomi valves are high quality, price competitive and reliable.
★★★★★
Customer
Steve
They just work great!
★★★★★
Customer
Sergio
Your cart
BONOMI
BONOMI M8E065LF WITH SERIES RB 355NLF 3-WAY LEAD FREE BRASS NPT BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR
From$42043 USD
$54500
Unit price /
Unavailable
The BONOMI M8E065LF with Series RB 355NLF 3-Way Lead Free Brass NPT Ball Valve and Metal Valbia Electric Actuator is a direct mount T-ported 3-way assembly. It is designed for drinking water applications and is lead-free brass NPT. It has a pressure rating of 400 WOG and a temperature range of -4°F to 366°F. It features a four seat design for sealing between pressured ports, a blow-out proof stem, and a low torque design with back up o-ring seats. The actuator is dual voltage, CSA and UL approved, and has a 24V AC/DC and 100-240V AC models available. It also has an ISO 5211 mounting, 75% duty cycle, anti-condensation heater, high-strength die cast aluminum housing, and a temperature range of -4°F to 131°F. It also has two auxiliary switches standard and a torque limiter standard.
It is tested and certified to ensure that it meets the highest standards of quality and performance. It is a great choice for any application that requires a reliable and efficient valve and actuator assembly.
Size
1/4" NPT
3/8" NPT
1/2" NPT
3/4" NPT
1" NPT
1-1/4" NPT
1-1/2" NPT
2" NPT
2-1/2" NPT
3" NPT
Voltage
24V AC/DC
100-240V AC
Actuator Action
ON/OFF FAIL IN PLACE
ON/OFF WITH FAIL-SAFE BATTERY BACKUP
MODULATING 0-10VDC/4-20 mA FAIL IN PLACE
MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP
