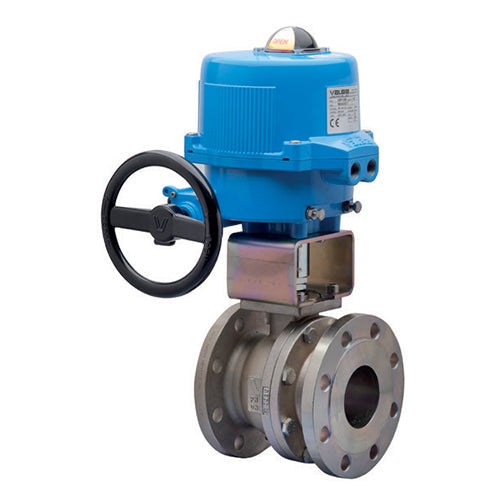

BONOMI M8E085 WITH SERIES 762000 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR

Elevate your systems with the unbeatable BONOMI M8E085 Series 762000: The epitome of excellence in 2-Way ANSI 150 Carbon Steel Split-Body Flanged Ball Valve and Metal Valbia Electric Actuator assemblies. Crafted for Water, Gas, and Oil applications, this dynamic combination promises exceptional performance. Immerse yourself in its features: Carbon Steel ANSI 150 Split Body Flanged design, spanning sizes from 1/2” to 12”, operating flawlessly from -4°F to 366°F. Trust in its durability, backed by a blow-out proof stem design and P.T.F.E. seats, packing, and thrust washer. The valve features a standard grounded ball and stem, PED 97/23/CE compliance, and a locking handle plate, all certified within ANSI B16.5, B16.10, B16.34 design standards. Safety is paramount with Fire Safe API 6FA-API 607 4th edition compliance, an ISO 5211 mounting pad, and double “D” stem. The actuator component ensures unwavering performance with dual voltages, CSA and UL approvals, and a versatile range from 24V AC/DC to 100-240V AC Models. Boasting ISO 5211 Mounting and a 75% Duty Cycle, it features an anti-condensation heater and high-strength Die Cast Aluminum housing. Operating seamlessly from -4°F to 131°F, the NEMA 4 Housing, two auxiliary switches, and standard torque limiter solidify its efficiency. Elevate your systems with the BONOMI M8E085 Series 762000 - where precision engineering and unmatched power converge for extraordinary outcomes. Seize the future of performance today!
