BONOMI M8E68J401 WITH SERIES 68J401 API 608 2-WAY ST. ST. ANSI CLASS 6

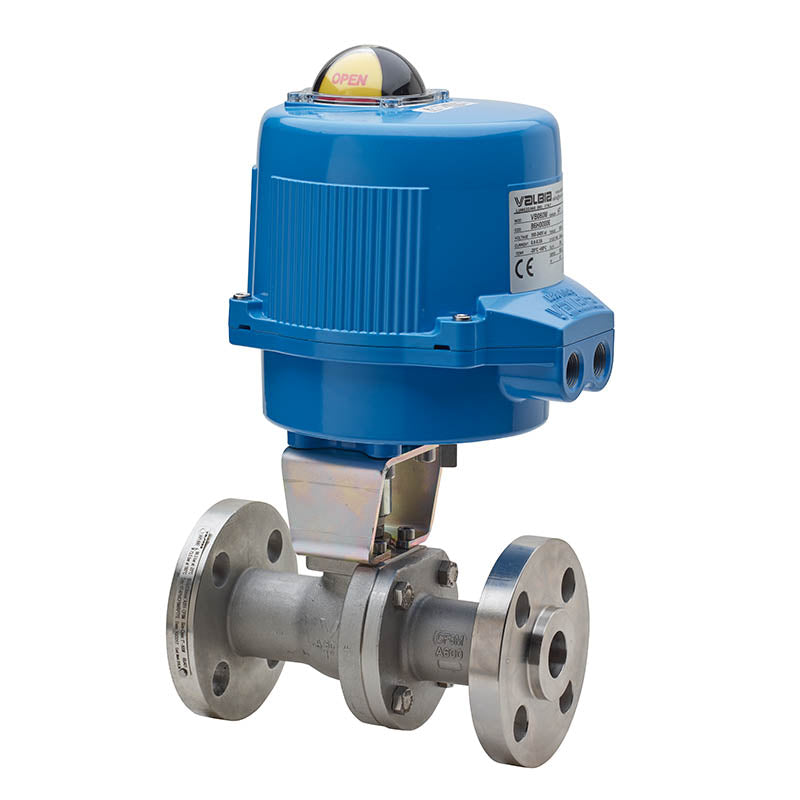

The BONOMI M8E68J401 WITH SERIES 68J401 API 608 2-WAY ST. ST. ANSI CLASS 600 FLANGED SPLIT BODY FIRE SAFE DESIGN BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR is a two-way, ANSI 600 stainless steel API 608 split-body style flanged ball valve with metal electric actuator. It is suitable for water, gas, and oil applications.

The valve's specifications include stainless steel ANSI 600 split body flanged API 608 ball valve; full port, sizes 1/2” to 2”; temperature range: -4°F to 366°F; 100% tested according to API 598 standards; blow out proof stem, locking handle; fire safe design; R.T.F.E. seats, packing and thrust washer; antistatic device; API 608, ASME B16.34, ASME B16.10, ASME 16.5, ASME B1.1 design; ISO 5211 mounting pad and double “D” stem.

The actuator's specifications include dual voltages; CSA, UL approved; 24V AC/DC and 100-240V AC models available; ISO 5211 mounting, 75% duty cycle; anti-condensation heater; high-strength, die cast aluminum housing; temperature range -4°F to 131°F; NEMA 4 housing; two auxiliary switches standard; torque limiter standard.

Assembly Description

BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 3/4", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 1-1/2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E68J401 WITH SERIES 68J401, API 608, 2", BRACKET MOUNT, ANSI CLASS 600 FLANGED, ST. ST. SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

1440 PSI
Valve Body Type

SPLIT BODY
Approvals

API 608
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 600 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Aluminum
