BONOMI PENTA SERIES AP20PCS 2-WAY NPT CARBON STEEL BODY 2-PIECE CLASS 800 BI-DIRECTIONAL HIGH TEMPERATURE BALL VALVE
BONOMI PENTA SERIES AP20PCS 2-WAY NPT CARBON STEEL BODY 2-PIECE CLASS 800 BI-DIRECTIONAL HIGH TEMPERATURE BALL VALVE - 1/2" NPT
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
*** Due to high order volume, orders may require additional business days to process.
Order processing time for manual valves and actuators is 5-7 business days + Transit time.
Most valves assemblies have a processing time of 10-15 days + transit time.
Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.
All processing times are subject to availability.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI PENTA SERIES AP20PCS 2-WAY NPT CARBON STEEL BODY 2-PIECE CLA...

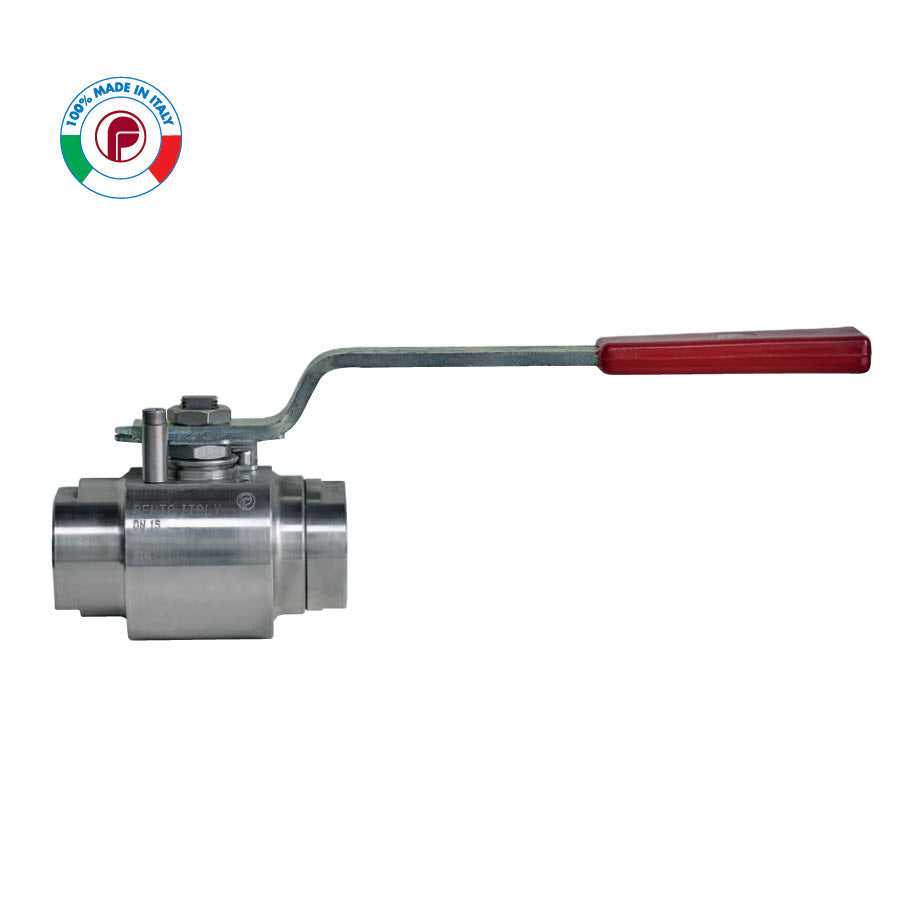

Bonomi Penta Series AP20PCS 2-Way NPT Carbon Steel Body 2-Piece Class 800 Bi-Directional High Temperature Ball Valve
This product is a metal seated floating ball valve that is designed for high temperature applications. It is a 2-piece screwed body made from barstock and has a temperature range of -20°F to +662°F. The valve also features a blow-out proof stem and PENTAFITE standard ball seats, with the option for other metal seats upon request.
It is API 598 Bubble Tight and exceeds ANSI B16.104/FC170-2 CL VI standards. For temperatures outside of the specified range, please consult the factory. The valve also has an adjustable, live-loaded graphite packing and comes with NPT threaded female standard, with the option for SW upon request.
The materials used in this valve are compliant with NACE MR01-75 standards and it has a stem elongation of 100 mm upon request. For those who prefer butt welding ends, integral nipples are available upon request. Additionally, a locking lever operator can be added upon request.
This valve is available in sizes ranging from 1/2' to 2' and is a reliable and durable choice for high temperature applications. For more information, please visit the product URL: http://bonomivalves.com/products/bonomi-penta-series-ap20pcs-2-way-npt-carbon-steel-body-2-piece-class-800-bi-directional-high-temperature-ball-valve
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
