BONOMI SERIES 250NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 250NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/4" NPT / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 250NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBI...

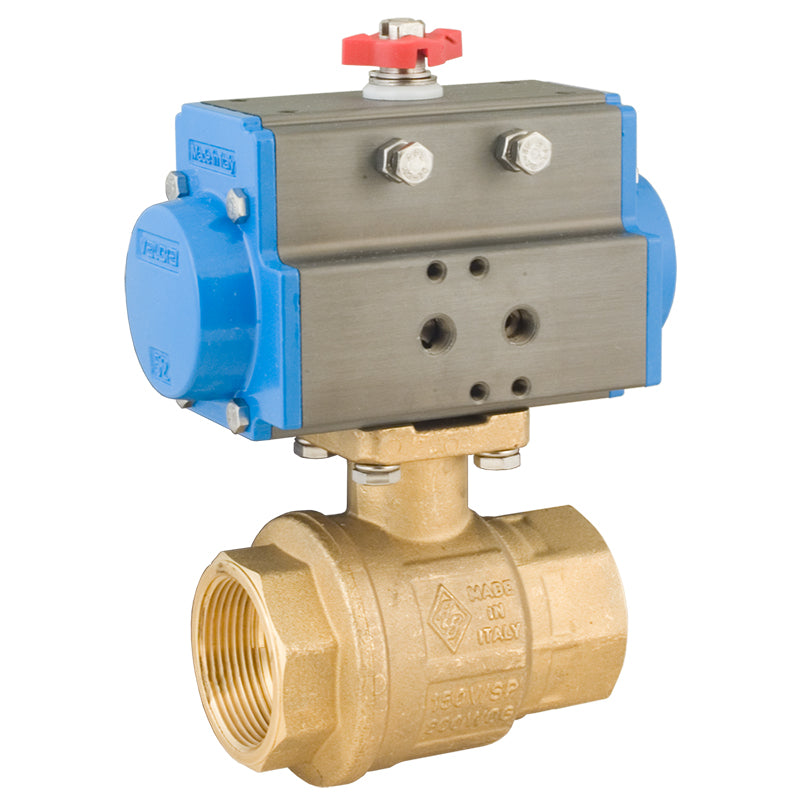

The BONOMI SERIES 250NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a direct mount 2-way, brass NPT ball valve and pneumatic actuator. It is designed for drinking water applications and is lead-free brass. The valve has a full port, sizes 1/4” to 4”, ISO 5211 pad and square stem, and a pressure rating to 600 WOG. It has a low torque design with back up O-ring and a double O-ring stem seal design for extended cycle life. It is 100% electronically tested in the open and closed position @ 80psi.
The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
