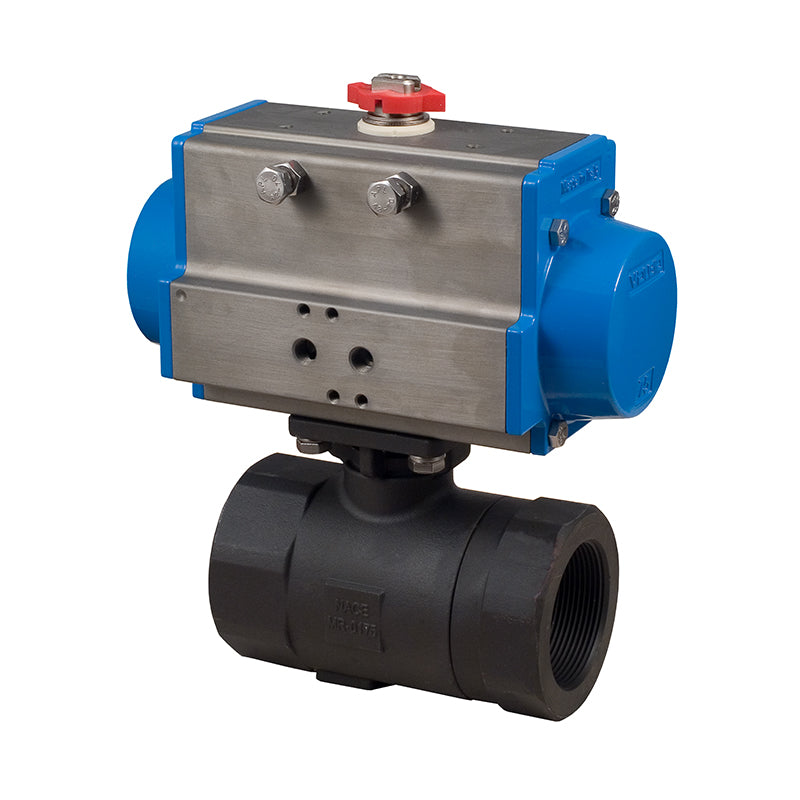

BONOMI SERIES 3000 2-WAY CARBON STEEL 2-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

Discover BONOMI SERIES 3000 2-WAY CARBON STEEL 2-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR the exceptional performance of our Direct Mount 2-Way 3000# Carbon Steel NPT Ball Valve paired with a precise Pneumatic Actuator. Engineered for high-pressure, low-temperature applications, our valve boasts impressive specifications including full port sizes ranging from 1/4" to 1-1/2", a reduced 2" port, and a robust pressure rating of 3000 psi at 100°F. With Delrin seats, a temperature range of -20°F to 185°F, and an anti-static design, this valve ensures reliability even in challenging conditions. The ISO 5211 mounting pad and NACE MR-0175 compliance further enhance its versatility.

Complementing the valve's excellence, the Actuator features a hard anodized extruded aluminum body, concentric spring sets, die-cast aluminum end caps, and a solid steel barstock pinion for unparalleled durability. The actuator's seamless 0°-90° rotation adjustment, along with POM piston guides, guarantees precise control. Its air pressure ratings ranging from 80 psi to 116 psi, a working temperature span of -4°F to 302°F, and a no-lubrication maintenance design, ensure consistent performance and longevity. Rest assured, our valve and actuator combination has undergone 100% factory testing, ensuring flawless functionality for your critical applications."
