BONOMI GHIBSON SERIES 540S EPOXY COATED CAST IRON BODY ST. ST. DISC BU

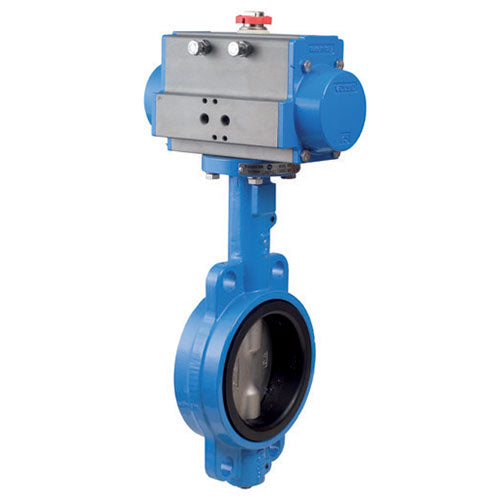

The BONOMI SERIES 540S EPOXY COATED CAST IRON BODY ST. ST. DISC BUNA-N SEATS WAFER STYLE BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR is a 2-way, rubber lined wafer-style butterfly valve with stainless steel disc and Buna-N seats. It is suitable for HVAC, water and air applications.

The valve has an ISO 5211 direct mount/square stem, epoxy coated ductile iron wafer body with stainless steel disc, BUNA seats (10°F to 250°F), API609 face to face flange, floating dual shaft disc design, MSS SP 67 compliant, and no pins in disc to prevent potential leak points.

The pneumatic actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is also 100% factory tested.

Assembly Description

BONOMI DA540S SERIES 540S, 2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 2-1/2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 3", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 4", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 5", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 6", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 8", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 10", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 12", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 2-1/2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 3", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 4", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 5", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 6", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 8", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 10", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 14", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 16", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 18", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA540S SERIES 540S, 20", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 12", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 14", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 16", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR270V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 18", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR270V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR540S SERIES 540S, 20", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, NBR SEATS, WAFER STYLE BUTTERFLY VALVE AND VALBIA SR330V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BUTTERFLY VALVE
Temperature Rating

-15 °F to 440 °F
Pressure Rating

250 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Wafer Style Flanged
Body Material

DUCTILE IRON WITH STAINLESS STEEL DISC
Actuator Housing Material

Hard Anodized Aluminum
