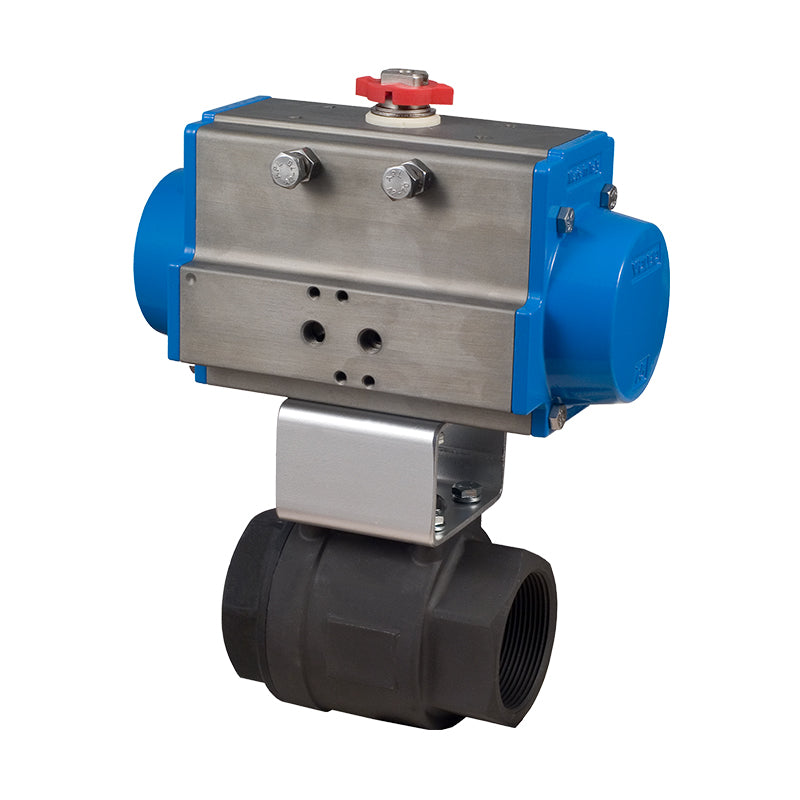

BONOMI SERIES 600LL 2-WAY CARBON STEEL 2-PIECE NPT BALL VALVE AND VALB

The BONOMI SERIES 600LL 2-WAY CARBON STEEL 2-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a great choice for a variety of applications. This unique assembly includes a 2-way, carbon steel NPT ball valve and a pneumatic actuator. It is suitable for hot water, steam, oil, and gases.

The valve has a 2-piece carbon steel body, full port sizes from 1/4” to 2”, self-adjusting stem packing, blow out proof stem design, and a pressure rating of 1/4” to 1” 2000 psi, 1-1/4” to 2” 1000 psi - 150 psi steam. It also has a temperature range of -4°F to 450°F and a mounting pad for the actuator.

The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a working temperature of -4°F - 302°F. It is also 100% factory tested and requires no lubrication maintenance for its lifetime.

Assembly Description

BONOMI 8P0124 WITH SERIES 600LL, 1/4" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 1/4" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 3/8" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 3/8" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 1/2" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 1/2" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 3/4" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 3/4" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 1" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 1" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 1-1/4" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 1-1/4" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 1-1/2" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 1-1/2" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0124 WITH SERIES 600LL, 2" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0125 WITH SERIES 600LL, 2" NPT, BRACKET MOUNT, CARBON STEEL, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-40 °F to 450 °F
Pressure Rating

2000 PSI
Valve Body Type

2-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
