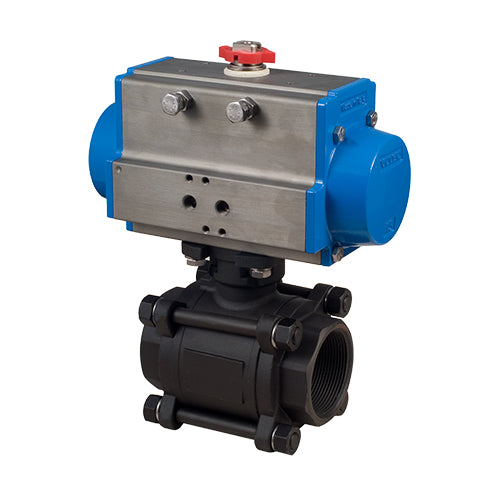

BONOMI SERIES 621LL 2-WAY CARBON STEEL 3-PIECE SW BALL VALVE AND VALBI

The BONOMI SERIES 621LL 2-WAY CARBON STEEL 3-PIECE SW ENDS BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly that combines a direct mount 2-way, 3 pc. Carbon Steel Ball Valve with SW ends and a Pneumatic Actuator. It is suitable for a variety of applications, including hot water, steam, oil, and gases.

The valve features a 3-piece Carbon Steel body, full port sizes from 1/4” to 4”, SW ends, ISO 5211 mounting pad with square stem, and pressure rating from 1/4” to 2” 1000 psi, 2-1/2” to 4” 800 psi - 150 psi steam. It also has a temperature range of -60°F to +440°F, blow out proof stem, multi-layer V-ring adjustable stem packing, TFM-1600 seats, P.T.F.E. packing and thrust washer.

The Pneumatic Actuator is made of hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and maximum air pressure rating of 116 psi. It also has a working temperature of -4°F - 302°F and requires no lubrication maintenance for the entire actuator lifetime. It is 100% factory tested.

Assembly Description

N/A
N/A
BONOMI 8P0622 WITH SERIES 621LL, 3/8" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 3/8" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 1/2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 1/2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 1" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 1" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 1-1/4" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 1-1/4" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 1-1/2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 1-1/2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 2-1/2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 2-1/2" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 3" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 3" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 3/4" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 3/4" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0622 WITH SERIES 621LL, 4" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0623 WITH SERIES 621LL, 4" SW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-40 °F to 440 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

SW ENDS
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
