BONOMI SERIES 632LL 2-WAY CARBON STEEL 3-PIECE BW ENDS BALL VALVE AND

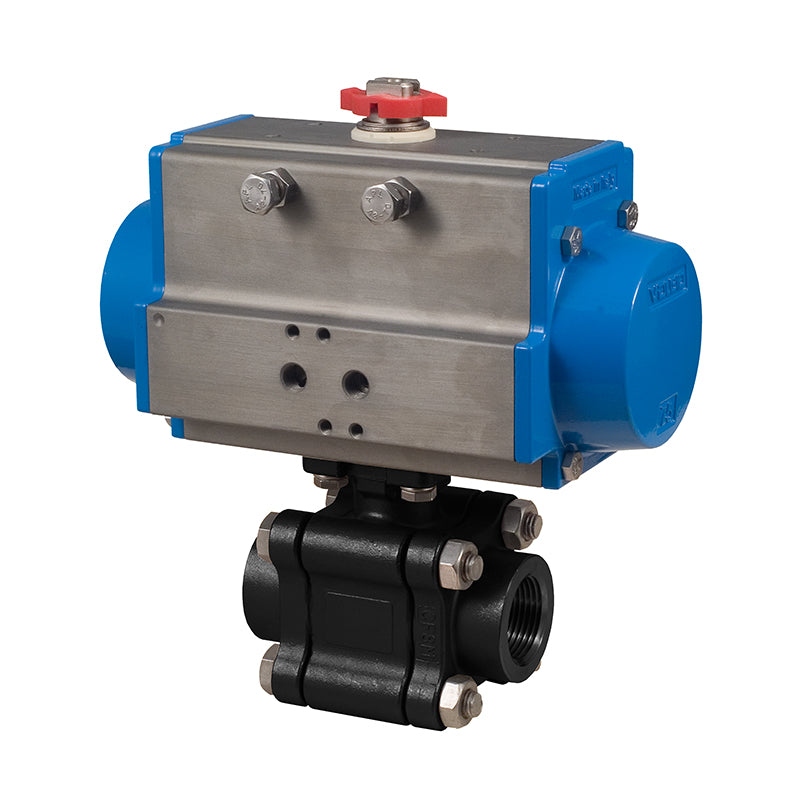

The BONOMI SERIES 632LL 2-WAY CARBON STEEL 3-PIECE BW ENDS BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount assembly with a 3-piece carbon steel body and BW ends. It is suitable for hot water, oil, and gases and is available in class 900 sizes 1/4” to 2” and class 600 sizes 2-1/2” to 4”. It features an ISO 5211 mounting pad with a square stem, TFM-4215 ball seats, a standard latch locking handle, and is fire safe to API 607-6th edition.

The pneumatic actuator is made of hard anodized extruded aluminum with concentric spring sets, die cast aluminum end caps, and a solid steel barstock pinion. It has a 0°-90° rotation adjustment cam and bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It is suitable for working temperatures of -4°F - 302°F and requires no lubrication maintenance for its lifetime.

Assembly Description

BONOMI 8P0634 WITH SERIES 632LL, 1/4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 1/4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 1/2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 1/2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 1" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 1" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 1-1/4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 1-1/4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 1-1/2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 1-1/2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 2-1/2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 2-1/2" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 3" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 3" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 3/4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 3/4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 3/8" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 3/8" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0634 WITH SERIES 632LL, 4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0635 WITH SERIES 632LL, 4" BW, DIRECT MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-50 °F to 550 °F
Pressure Rating

2220 PSI
Valve Body Type

3-PIECE
Approvals

FIRE SAFE TO API 607-6TH ED.
Valve Body Configuration

2-WAY
Valve Connection Type

BW ENDS
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
