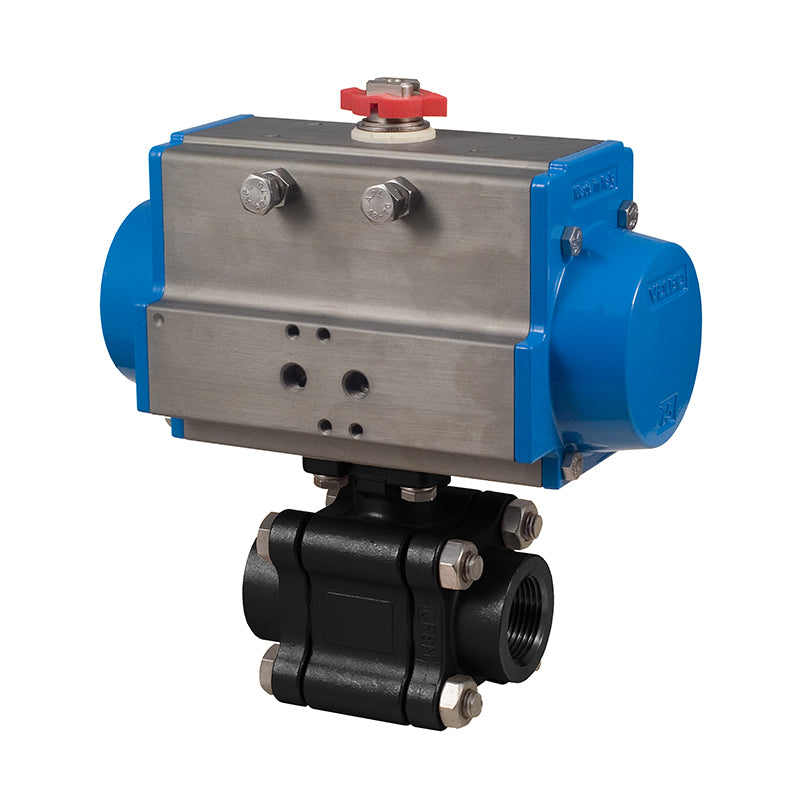

BONOMI SERIES 640LL 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 640LL 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/4" NPT / DOUBLE ACTING
Shipping Weight:
Technical Description
Delivery and Shipping
Delivery and Shipping
Usually ships within a week. We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 640LL 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND V...
Description
Description
The BONOMI SERIES 640LL 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount assembly with a 3-piece carbon steel body and NPT ends. It is designed for hot water, steam, oil, and gases and is available in class 900 sizes 1/4” to 2” and class 600 sizes 2-1/2” to 4”. It features PEEK ball seats, a standard latch locking handle, and is fire safe to API 607-6th edition. The temperature range is +150° F to 500° F and the working steam pressure is up to 250 psi.
The pneumatic actuator is made of hard anodized extruded aluminum and features concentric spring sets, die cast aluminum end caps, and a solid steel barstock pinion. It has a 0°-90° rotation adjustment cam and bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It is designed to work in temperatures from -4°F to 302°F and requires no lubrication maintenance for its lifetime.
Specifications and Data Sheet
Specifications and Data Sheet
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
