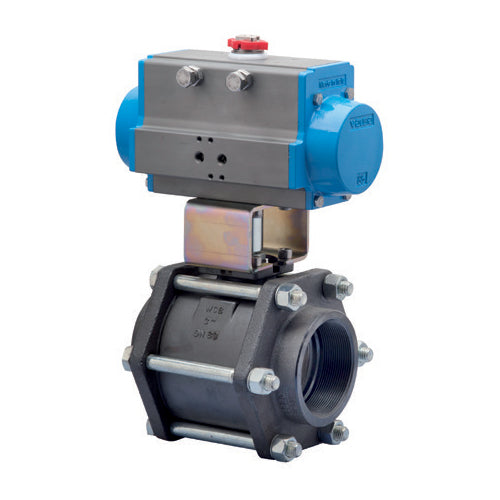

BONOMI SERIES 710065 2-WAY CARBON STEEL 3-PIECE BW BALL VALVE AND VALB

The BONOMI SERIES 710065 2-WAY CARBON STEEL 3-PIECE BW BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is the perfect choice for hot water, steam, oil, and gas applications. This assembly features a 2-way, 3 pc. Carbon Steel Ball Valve for Steam with BW ends and Pneumatic Actuator. It has a working pressure of 1000 psi (3/8” to 1/2”), 600 psi (3/4” to 1”), 350 psi (1-1/4” to 2”), and 230 psi (2-1/2” to 4”) - 250 steam. The temperature range is -4°F to 406°F. It also has a blow out proof stem, adjustable stem packing, and 25% carbon filled P.T.F.E. ball seats.

The Actuator features a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, and working temperature of -4°F - 302°F. It also requires no lubrication maintenance for the entire actuator lifetime and is 100% factory tested.

Assembly Description

BONOMI 8P0205 WITH SERIES 710065, 3/8" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710065, 3/8" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710085, 1/2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710085, 1/2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710065, 3/4" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710065, 3/4" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710085, 1" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710085, 1" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710085, 1-1/4" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710085, 1-1/4" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710085, 1-1/2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710085, 1-1/2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710085, 2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710065, 2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710065, 2-1/2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710065, 2-1/2" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710065, 3" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710065, 3" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0205 WITH SERIES 710065, 4" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0206 WITH SERIES 710065, 4" BW ENDS, BRACKET MOUNT, CARBON STEEL, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 406 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

BW ENDS
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
