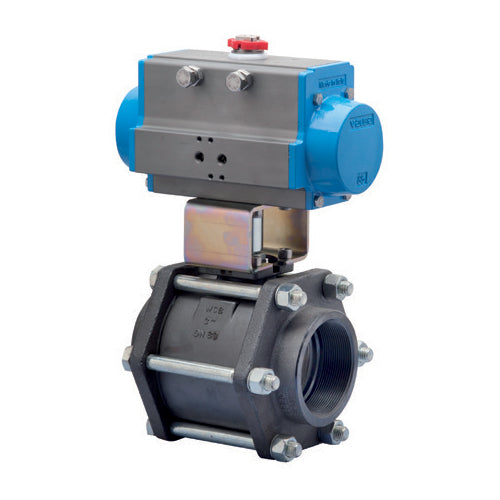

BONOMI SERIES 710085 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 710085 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/4" NPT / DOUBLE ACTING
Shipping Weight:
Technical Description
Delivery and Shipping
Delivery and Shipping
Usually ships within a week. We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 710085 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND ...
Description
Description
The BONOMI SERIES 710085 2-WAY CARBON STEEL 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is the perfect choice for hot water, steam, oil, and gas applications. This assembly features a 2-way, 3 pc. Carbon Steel Ball Valve for Steam with NPT ends and Pneumatic Actuator. It has a working pressure of 1000 psi (1/4” to 1/2”), 600 psi (3/4” to 1”), 350 psi (1-1/4” to 2”), and 230 psi (2-1/2” to 4”) - 250 steam. The temperature range is -4°F to 406°F. It also has a blow out proof stem, adjustable stem packing, and 25% carbon filled P.T.F.E. ball seats.
The Actuator features a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, and working temperature of -4°F - 302°F. It also requires no lubrication maintenance for the entire actuator lifetime and is 100% factory tested.
Specifications and Data Sheet
Specifications and Data Sheet
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
