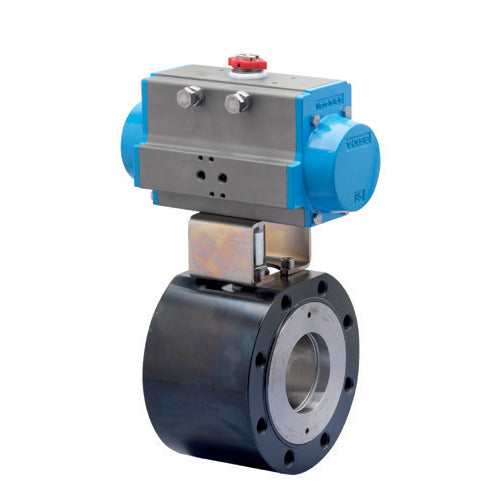

BONOMI SERIES 720017 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BAL

The BONOMI SERIES 720017 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, ANSI 150 Carbon Steel Wafer-style Flanged Ball Valve and Pneumatic Actuator. It is suitable for applications such as water, gas, and oil. The valve has a Carbon Steel ANSI 150 Full port, with sizes ranging from 1/2” to 6”. It has a temperature range of -4°F to 366°F, and features a blow out proof stem design, R.P.T.F.E. seats, packing and thrust washer, and a space saving design. It is TUV T.A. Luft approved and designed to ANSI B16.34 standards, with an ISO 5211 mounting pad with double “D” stem.

The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F, and requires no lubrication maintenance for the entire actuator lifetime. It is also 100% factory tested.

Assembly Description

BONOMI 8P0175 WITH SERIES 720017, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 1-1/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 2-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 5", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0175 WITH SERIES 720017, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 1-1/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 2-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 5", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0176 WITH SERIES 720017, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 366 °F
Pressure Rating

285 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
