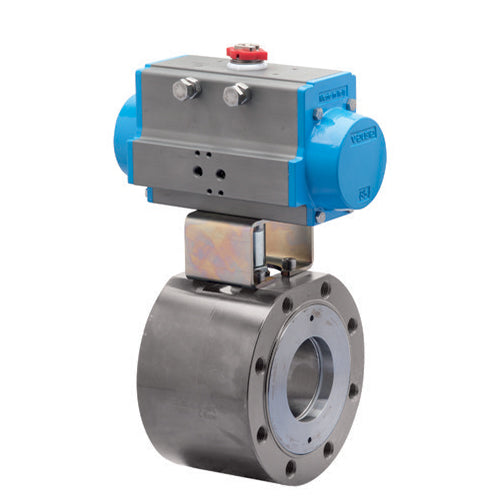

BONOMI SERIES 720288 2-WAY ST. ST. BODY ANSI CLASS 300 FLANGED WAFER S

The BONOMI SERIES 720288 2-WAY ST. ST. BODY ANSI CLASS 300 FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for water, gas, and oil applications. It features a stainless steel ANSI 300 full port, sizes 1/2” to 6”, and a temperature range of -4°F to 366°F. The valve also has a blow out proof stem design, R.P.T.F.E. seats, packing and thrust washer, and a space saving design. It is TUV T.A. Luft approved and ANSI B16.34 designed with an ISO 5211 mounting pad with double “D” stem.

The actuator is made of hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F and requires no lubrication maintenance for the entire actuator lifetime. It is also 100% factory tested.

Assembly Description

BONOMI 8P720288 WITH SERIES 720288, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720288 WITH SERIES 720288, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720290 WITH SERIES 720288, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR230V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

720 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
