BONOMI | SKU: 8P725002-1

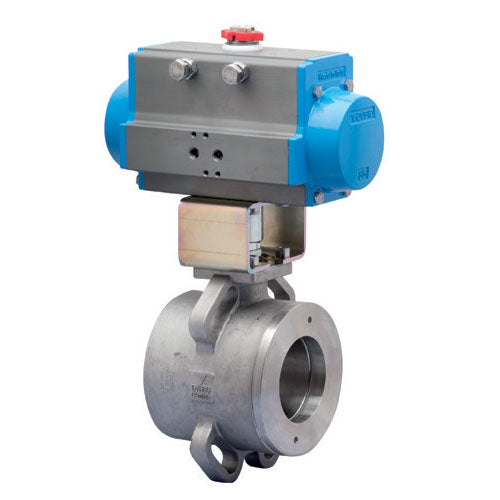

BONOMI SERIES 725002 2-WAY ST. ST. BODY ANSI CLASS 150 TRUE WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

$523¹³ USD ~~$671⁸⁸~~

Shipping calculated at checkout.

Size

1" ANSI 150 TRUE WAFER STYLE 1-1/4" ANSI 150 TRUE WAFER STYLE 1-1/2" ANSI 150 TRUE WAFER STYLE 2" ANSI 150 TRUE WAFER STYLE 2-1/2" ANSI 150 TRUE WAFER STYLE 3" ANSI 150 TRUE WAFER STYLE 4" ANSI 150 TRUE WAFER STYLE

Actuator Action

DOUBLE ACTING SPRING RETURN

Product variants

BONOMI SERIES 725002 2-WAY ST. ST. BODY ANSI CLASS 150 TRUE WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1" ANSI 150 TRUE WAFER STYLE / DOUBLE ACTING

Shipping Weight:

6.83 lb

Delivery and Shipping

*** Due to high order volume, orders may require additional business days to process.

Order processing time for manual valves and actuators is 5-7 business days + Transit time.

Most valves assemblies have a processing time of 10-15 days + transit time.

Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.

All processing times are subject to availability and current production load.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

The BONOMI SERIES 725002 2-WAY ST. ST. BODY ANSI CLASS 150 TRUE WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a reliable and durable assembly. It features a 2-way, ANSI 150 stainless steel body and a true wafer style ball valve. The valve is designed to provide superior performance and long-term reliability.

The VALBIA pneumatic actuator is designed to provide precise control and accurate operation. It is equipped with a manual override and a visual position indicator for easy operation. The actuator is also designed to be corrosion-resistant and is suitable for a wide range of applications.

The BONOMI SERIES 725002 2-WAY ST. ST. BODY ANSI CLASS 150 TRUE WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a reliable and durable assembly that is designed to provide superior performance and long-term reliability. It is suitable for a wide range of applications and is equipped with a manual override and a visual position indicator for easy operation.

Assembly Description

BONOMI 8P725002 WITH SERIES 725002, 1, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725002 WITH SERIES 725002, 1-1/4, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725002 WITH SERIES 725002, 1-1/2, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725002 WITH SERIES 725002, 2, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725002 WITH SERIES 725002, 2-1/2, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725002 WITH SERIES 725002, 3, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725002 WITH SERIES 725002, 4, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 1, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 1-1/4, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 1-1/2, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 2, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 2-1/2, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 3, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P725003 WITH SERIES 725002, 4, BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, TRUE WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 406 °F
Pressure Rating

275 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
