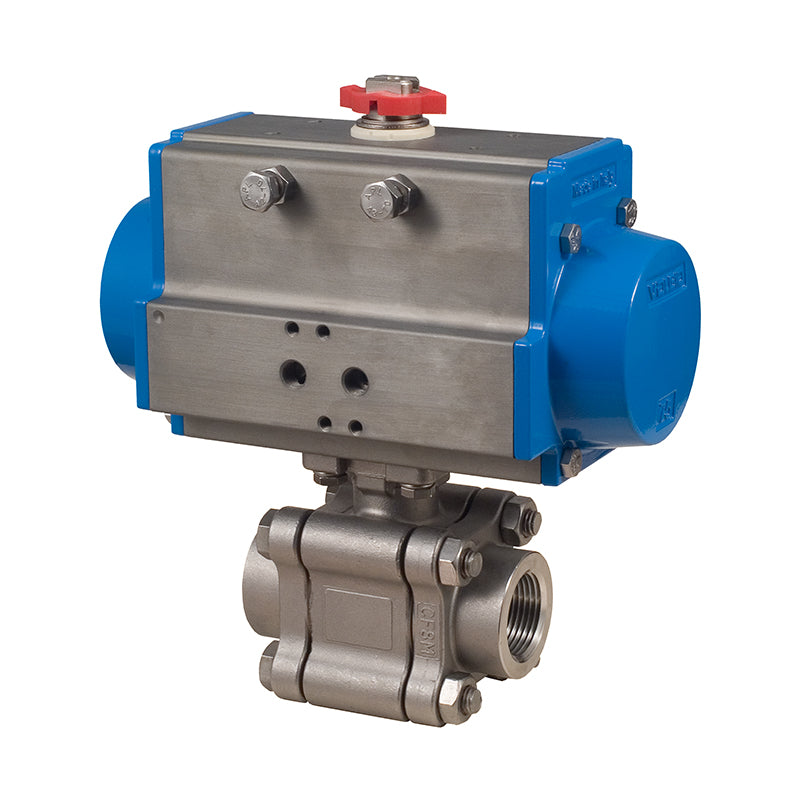

BONOMI SERIES 730LL 2-WAY ST. ST. BODY 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES 730LL 2-WAY ST. ST. BODY 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount assembly with a 2-way, 3 Pc. stainless steel ball valve and a pneumatic actuator. It is suitable for hot water, steam, oil, and gases.

The valve has a 3-piece stainless steel body, NPT, class 900 sizes 1/4” to 2”, class 600 sizes 2-1/2” to 4”, carbon steel-2200 psi (1/4” to 2”), 1500 psi (2-1/2” to 4”), ISO 5211 mounting pad w/ square stem, TFM-4215 ball seats, standard latch locking handle, and conforms to ANSI 16.34, ANSI B1.20.1 thread depths, NACE MR0175. It is fire safe to API 607-6th edition, has grounded ball and stem, standard 316 stainless steel ball and stem, and a temperature range of -50° F to 550° F. The working steam pressure is up to 250 psi.

The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is 100% factory tested.
