BONOMI SERIES 761031 2-WAY CARBON STEEL ANSI CLASS 300 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 761031 2-WAY CARBON STEEL ANSI CLASS 300 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/2" ANSI 300 FLANGED SPLIT BODY / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
*** Due to high order volume, orders may require additional business days to process.
Order processing time for manual valves and actuators is 5-7 business days + Transit time.
Most valves assemblies have a processing time of 10-15 days + transit time.
Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.
All processing times are subject to availability and current production load.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 761031 2-WAY CARBON STEEL ANSI CLASS 300 FIRE SAFE DE...

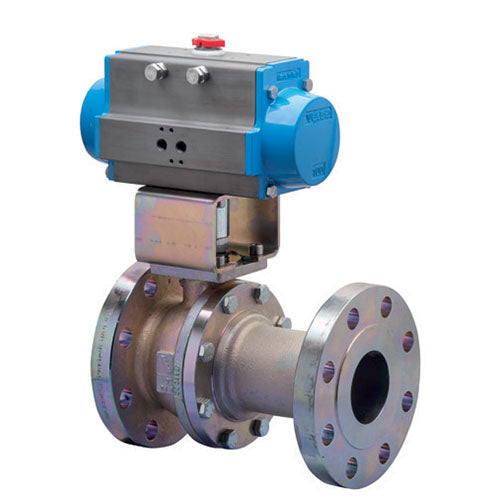

Introducing the BONOMI SERIES 761031 2-WAY CARBON STEEL ANSI CLASS 300 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR. This assembly is a 2-Way, ANSI 300 Carbon Steel Split-Body Style Flanged Ball Valve and Pneumatic Actuator, perfect for water, gas, and oil applications.
The valve's specifications include Carbon Steel, ANSI class 300 flanged; Full port, sizes 1/2” to 6”; Temperature range -4°F to 400°F; Blow-out proof stem, adjustable stem packing; P.T.F.E. seats, packing and thrust washer; 100% tested; PED 97/23/CE; ANSI B16.5, B16.10, B16.34 design; Fire Safe API 6FA-API 607 4th edition; Antistatic Device; ISO 5211 mounting pad with double “D” stem.
The actuator's specifications include Hard anodized extruded aluminum body; Concentric spring sets; Die cast aluminum end caps; Solid steel barstock pinion (not casting); 0°-90° rotation adjustment cam; 0°-90° rotation adjustment bolts; POM piston guides; Minimum air pressure rating: 80 psi; Maximum air pressure rating: 116 psi; Working temperature: -4°F - 302°F; No lubrication maintenance required for the entire actuator lifetime; 100% factory tested.
For a reliable and stylish solution, look no further than the BONOMI SERIES 761031 2-WAY CARBON STEEL ANSI CLASS 300 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
