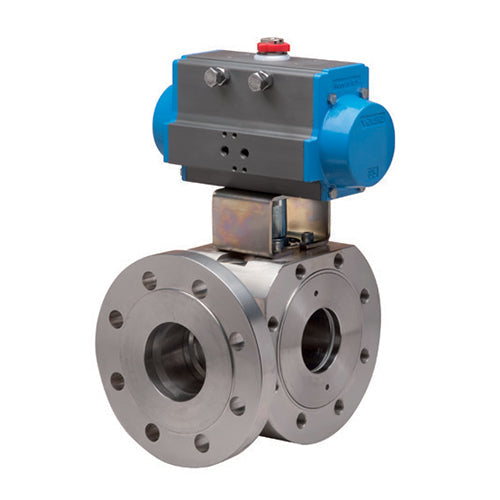

BONOMI SERIES 776018 3-WAY REDUCED L-PORT ST. ST. ANSI CLASS 150 FLANG

The BONOMI SERIES 776018 3-WAY REDUCED L-PORT ST. ST. ANSI CLASS 150 FLANGED BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a two-way, ANSI 150 stainless steel L-ported diverter flanged ball valve and pneumatic actuator. It is suitable for water, gas, and oil applications.

The valve's specifications include stainless steel ANSI Class 150, 3-way diverter L port, compact design, sizes 1/2” to 4”, temperature range -4° F to 366° F., blow out proof stem, R.P.T.F.E. seats, packing and thrust washer, 100% tested, TUV T.A. Luft approved, and ISO 5211 mounting pad with double “D” stem.

The actuator's specifications include hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating: 80 psi, maximum air pressure rating: 116 psi, working temperature: -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.

Assembly Description

BONOMI 8P0181 WITH SERIES 776018 , 1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 3/4", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 1", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 1-1/4", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 1-1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 2-1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 3", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0181 WITH SERIES 776018 , 4", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 3/4", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 1", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 1-1/4", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 1-1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 2-1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 3", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0182 WITH SERIES 776018, 4", BRACKET MOUNT, ST. ST. ANSI CLASS 150 FLANGED COMPACT DESIGN, REDUCED L-PORT, 3-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

275 PSI
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

3-WAY "L" PORT
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
