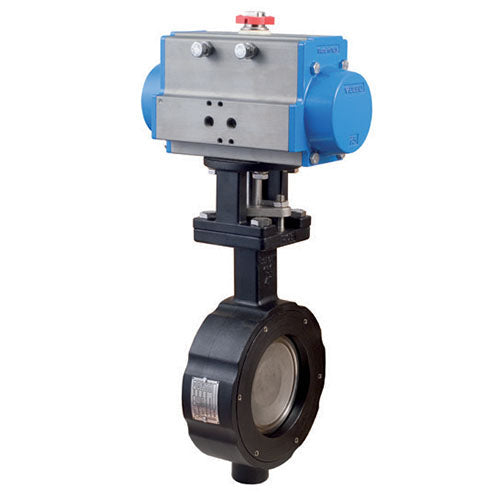

BONOMI SERIES 8300 CARBON STEEL BODY ST. ST. DISC PTFE SEATS WAFER STY

The BONOMI SERIES 8300 CARBON STEEL BODY ST. ST. DISC PTFE SEATS WAFER STYLE ANSI CLASS 300 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR is a two-way, carbon steel wafer-style high performance butterfly valve and pneumatic actuator. It is designed for use in hot water, steam, oil, and gas applications. The valve is made of carbon steel and is ANSI 300 wafer style, with sizes 2.

The valve is designed for high performance and is suitable for a variety of industrial applications. It is easy to install and maintain, and is designed to provide reliable operation for years to come. The valve is also corrosion-resistant and has a long service life.

Assembly Description

BONOMI DA8300 WITH SERIES 8300, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8300 WITH SERIES 8300, 12", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA200V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR230V/05 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8300 WITH SERIES 8300, 12", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR270V/07 SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

HIGH-PERFORMANCE BUTTERFLY VALVE
Temperature Rating

-20 °F to 475 °F
Pressure Rating

740 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Wafer Style Flanged
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
