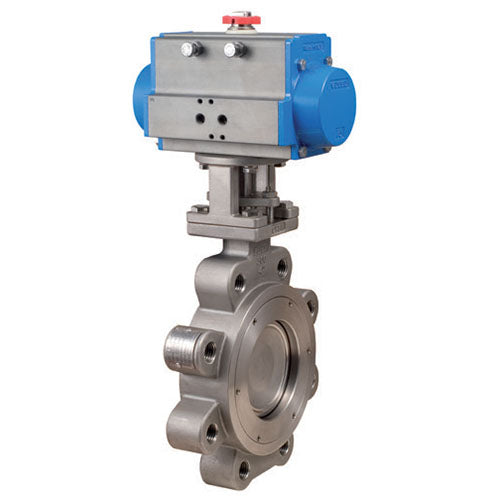

BONOMI SERIES 9101 ST. ST. BODY ST. ST. DISC PTFE SEATS LUG STYLE ANSI

Introducing BONOMI SERIES 9101 ST. ST. BODY ST. ST. DISC PTFE SEATS LUG STYLE ANSI CLASS 150 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR our exceptional 2-Way, Stainless Steel Lug-style High Performance Butterfly Valve and Pneumatic Actuator – a product that stands apart from the competition. Engineered for excellence, this valve is designed to tackle various applications such as Hot Water, Steam, Oil, and Gases with utmost precision. Crafted from stainless steel ANSI 150 Lug style, available in sizes 2" to 12", it features an ISO 5211 direct mounting pad/square stem for seamless integration. The valve's unique compact design allows for easy access to packing, and its replaceable seat design ensures long-lasting durability. Boasting multiple V-ring stem packing and R.P.T.F.E. seats (with metal seats available upon request), this high-performance butterfly valve guarantees reliable and consistent torque under pressure, providing unmatched dependability from -20°F to 475°F.

The distinctive Pneumatic Actuator complements the valve's prowess with its hard anodized extruded aluminum body, die-cast aluminum end caps, and solid steel barstock pinion, ensuring smooth 0°-90° rotation adjustment cam for precise control. The actuator's innovative design incorporates concentric spring sets and POM piston guides for enhanced efficiency and performance. With a wide operating temperature range from -4°F to 302°F, this actuator showcases unparalleled resilience and is 100% factory tested to ensure top-notch reliability. What truly sets this product apart is its minimal air pressure requirement of 80 psi and maximum rating of 116 psi, eliminating the need for lubrication maintenance throughout its entire lifetime. Embrace the uniqueness of this 2-Way, Stainless Steel Lug-style High Performance Butterfly Valve and Pneumatic Actuator, and experience unrivaled excellence in fluid control and automation.

Assembly Description

BONOMI DA9101 WITH SERIES 9101, 2", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 2-1/2", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 3", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 4", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 5", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 6", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 8", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 10", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9101 WITH SERIES 9101, 12", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 2", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 2-1/2", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 3", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 4", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 5", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 6", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 8", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 10", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9101 WITH SERIES 9101, 12", DIRECT MOUNT, ST. ST. BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

HIGH-PERFORMANCE BUTTERFLY VALVE
Temperature Rating

'-20 °F to 475 °F
Pressure Rating

275 PSI
Valve Body Type

LUG STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Lug Style Flanged
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
