BONOMI SERIES 9321 ST. ST. BODY ST. ST. DISC METAL SEATED SEATS LUG ST

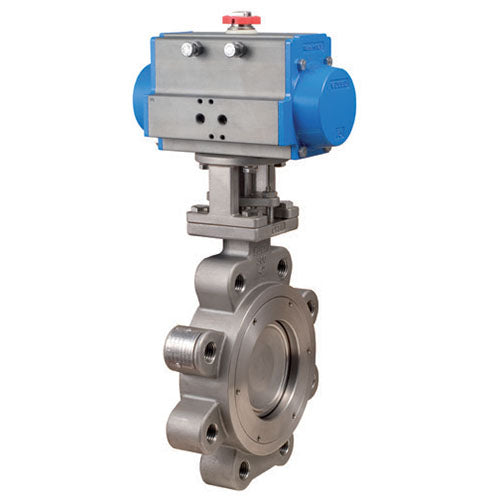

Introducing BONOMI SERIES 9321 STAINLESS STEEL BODY STAINLESS STEEL DISC METAL SEATED SEATS LUG STYLE ANSI CLASS 300 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR is an exceptional product with2-Way, Stainless Steel Lug-style High Performance Metal Seats Butterfly Valve and Pneumatic Actuator. What sets this valve apart is its unparalleled uniqueness, designed to meet the demands of various applications such as Hot Water, Steam, Oil, and Gases. Crafted with precision and innovation, the valve boasts a stainless steel ANSI 300 Lug style ranging in sizes from 2" to 12", ensuring robust performance and reliability.
The valve's metal seats offer enhanced durability and longevity, providing a reliable and consistent torque. Its replaceable seat design and multiple V-ring stem packing ensure easy maintenance and swift operation. With a temperature range from -20°F to 475°F and metal seats rated at 150 WSP, this valve can withstand even the most extreme conditions. Paired with the pneumatic actuator, featuring a hard anodized extruded aluminum body and solid steel barstock pinion, the product guarantees smooth and precise 0°-90° rotation adjustment. Moreover, the actuator's maintenance-free design, POM piston guides, and factory-tested 80 psi to 116 psi air pressure rating ensure seamless performance from -4°F to 302°F. In summary, this remarkable valve and actuator combination is a testament to cutting-edge engineering and the ideal solution for your industrial needs.

Assembly Description

BONOMI DA9321 WITH SERIES 9321, 2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 2-1/2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 3", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 4", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 5", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 6", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 8", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 10", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA9321 WITH SERIES 9321, 12", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 2-1/2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 3", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 4", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 5", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 6", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 8", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 10", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR9321 WITH SERIES 9321, 12", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE LUG STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

HIGH-PERFORMANCE BUTTERFLY VALVE
Temperature Rating

-20 °F to 475 °F
Pressure Rating

720 PSI
Valve Body Type

LUG STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Lug Style Flanged
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
