BONOMI | SKU: DAPVCBFVE-2

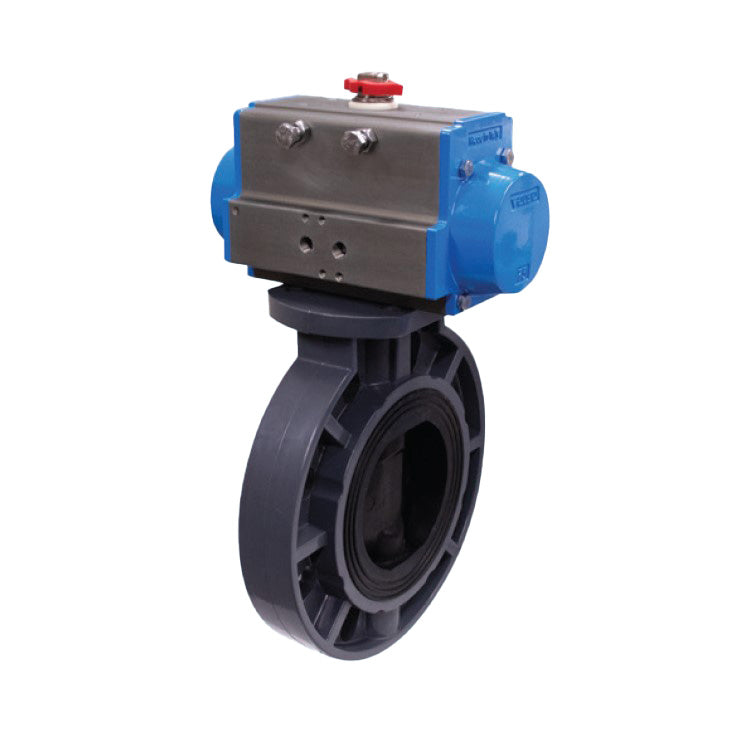

BONOMI SERIES PVCBFVE EPDM SEATS PVC BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR

$495⁵⁰ USD ~~$636⁴⁰~~

Shipping calculated at checkout.

Size

2" WAFER 3" WAFER 4" WAFER 6" WAFER 8" WAFER 10" WAFER 12" WAFER

Actuator Action

DOUBLE ACTING SPRING RETURN

Product variants

BONOMI SERIES PVCBFVE EPDM SEATS PVC BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR - 2" WAFER / DOUBLE ACTING

Shipping Weight:

4.87 lb

Delivery and Shipping

*** Due to high order volume, orders may require additional business days to process.

Order processing time for manual valves and actuators is 5-7 business days + Transit time.

Most valves assemblies have a processing time of 10-15 days + transit time.

Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.

All processing times are subject to availability and current production load.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

Introducing the BONOMI SERIES PVCBFVE EPDM SEATS PVC BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR from Bonomi Valves. This stylish and attractive valve is perfect for water, gas, oil, and chemical applications. It features a corrosion-resistant thermoplastic body and disc, a compact and light-weight design, standard EPDM seats, and a full boot seal for durable performance.

The valve is ANSI B16.5 Class 150 Flanged and ISO 5211 compliant for mounting pattern for actuator or gear operators. It has a pressure rating of 150 psi non-shock wafer at 73°F. Get the perfect valve for your needs with the BONOMI SERIES PVCBFVE EPDM SEATS PVC BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR.

Assembly Description

BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 2", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 3", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 4", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 6", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 8", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 10", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DAPVCBFVE WITH SERIES PVCBFVE, 12", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 2", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 3", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 4", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 6", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 8", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 10", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SRPVCBFVE WITH SERIES PVCBFVE, 12", DIRECT MOUNT, EPDM SEATS, WAFER STYLE PVC BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BUTTERFLY VALVE
Temperature Rating

32 °F to 73 °F
Pressure Rating

150 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Lug Style Flanged
Body Material

PVC
Actuator Housing Material

Hard Anodized Aluminum
