BONOMI SERIES RB 355N 3-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES RB 355N 3-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/4" NPT / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES RB 355N 3-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMAT...

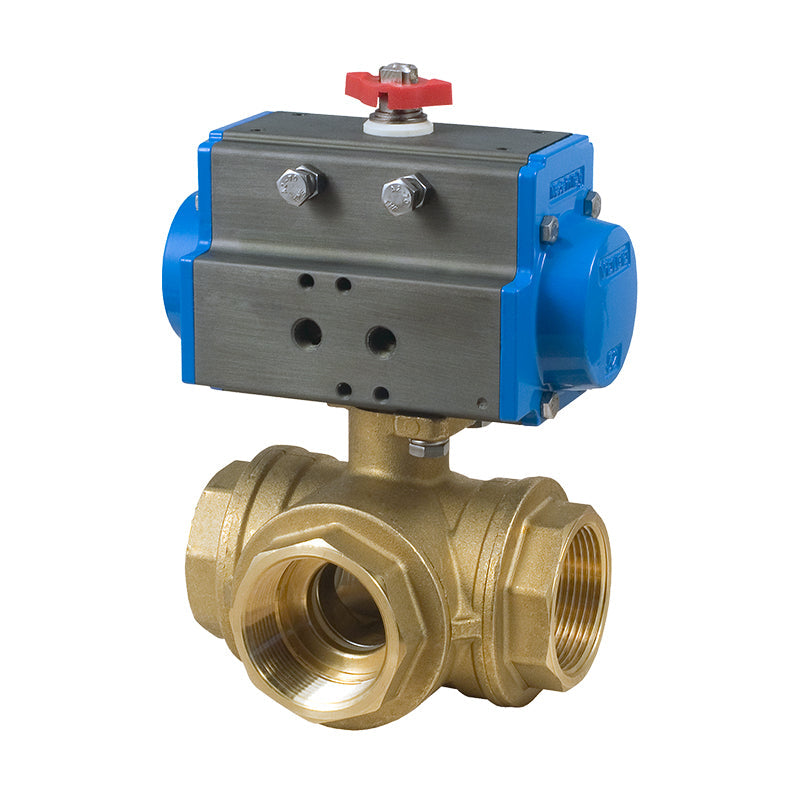

The BONOMI SERIES RB 355N 3-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount T-ported 3-way assembly. It is suitable for non-potable water, gas, and oil applications. The valve has a standard T-port, sizes 1/4” to 3”, ISO 5211 pad and square stem, pressure rating to 400 WOG, temperature range -4°F to 366°F, four (4) seat design for sealing between pressured ports, blow-out proof stem, chrome plated brass ball, low torque design with back up o-ring seats, and double o-ring stem seal design for extended cycle life.
The pneumatic actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
