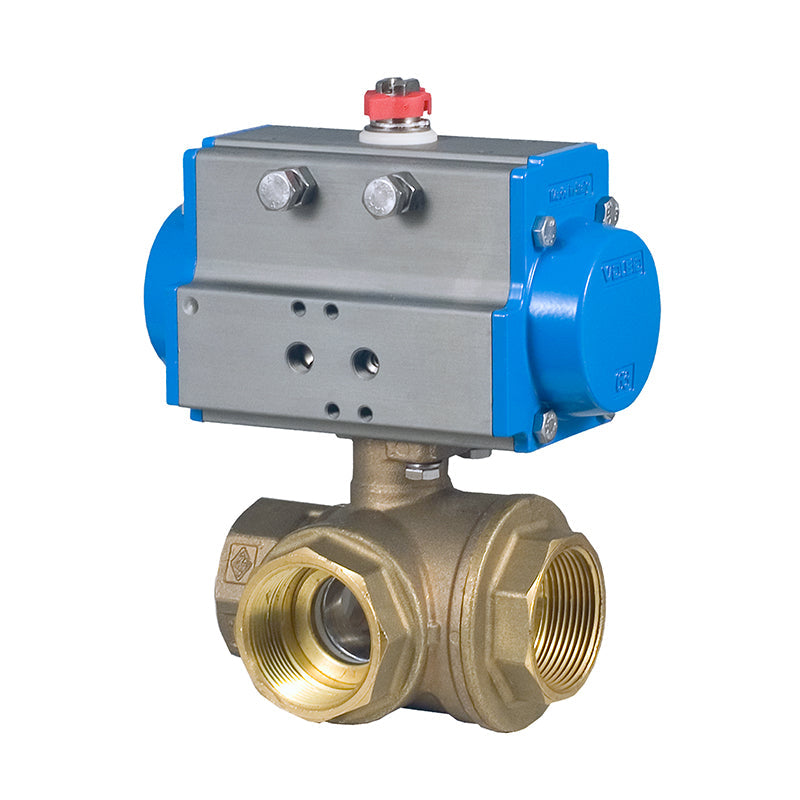

BONOMI SERIES RB 365NLF 3-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES RB 365NLF 3-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly of lead-free direct mount L-ported 3-way, brass NPT ball valve and pneumatic actuator. It is designed for drinking water applications and has a pressure rating of up to 400 WOG. The valve has a temperature range of -4°F to 366°F and features a four (4) seat design for sealing between pressured ports. It also has a blow-out proof stem, T.E.A. coated LF brass ball, low torque design with back up o-ring seats, and double o-ring stem seal design for extended cycle life.

The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi. It has a maximum air pressure rating of 116 psi and a working temperature of -4°F - 302°F. It requires no lubrication maintenance for the entire actuator lifetime and is 100% factory tested.
