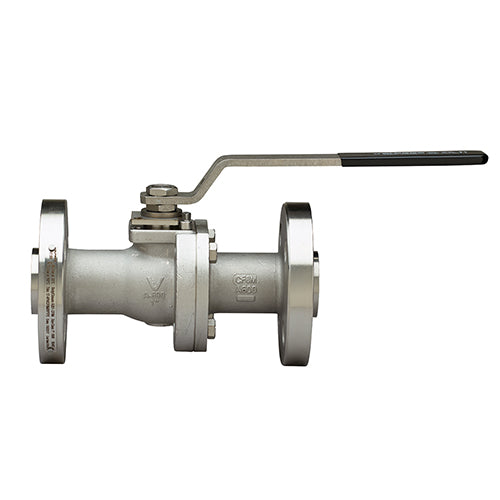

VALPRES SERIES 68R415 API 608 SUPER DUPLEX STAINLESS STEEL ANSI 600 FLANGED, FULL PORT, SPLIT-BODY BALL VALVE W/ ISO 5211 PAD AND DOUBLE "D" STEM
VALPRES SERIES 68R415 API 608 SUPER DUPLEX STAINLESS STEEL ANSI 600 FLANGED, FULL PORT, SPLIT-BODY BALL VALVE W/ ISO 5211 PAD AND DOUBLE "D" STEM - 1/2" ANSI 600 Flanged Ends
Shipping Weight:
Technical Description
Delivery and Shipping
Delivery and Shipping
Usually ships within a week. We will notify you if lead time is extended.
Contact us if you have any questions.
VALPRES SERIES 68R415 API 608 SUPER DUPLEX STAINLESS STEEL ANSI 600...
Description
Description
Super Duplex Stainless Steel ANSI 600 Split Body Flanged API 608 Ball Valve; Full port, sizes 1/2” to 2”; Temperature range: - 4°F to 366°F; 100% tested according to API 598 standards; Blow out proof stem, locking handle; Fire safe design; R.T.F.E. seats, packing and thrust washer; Antistatic device; API 608, ASME B16.34, ASME B16.10, ASME 16.5, ASME B1.1 design; ISO 5211 mounting pad and double “D” stem;
Specifications and Data Sheet
Specifications and Data Sheet
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
Download
