BONOMI  |  SKU: 700076-1/4

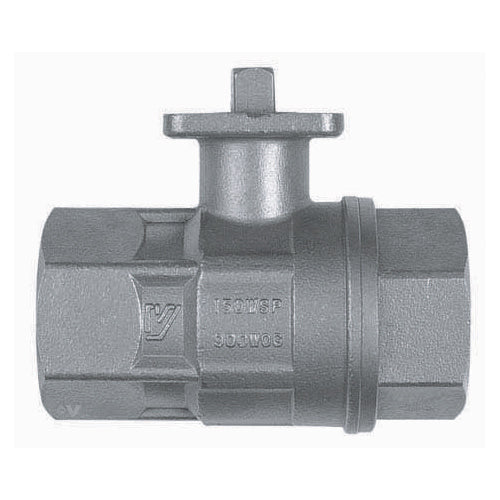

VALPRES SERIES 700076 FULL PORT STAINLESS STEEL BALL VALVE 1000 PSI, FNPT THREADED W/ ISO 5211 DIRECT MOUNTING PAD

$4754 USD $6400
Shipping calculated at checkout.
Size

VALPRES SERIES 700076 FULL PORT STAINLESS STEEL BALL VALVE 1000 PSI, FNPT THREADED W/ ISO 5211 DIRECT MOUNTING PAD - 1/4" NPT

Shipping Weight:
3.69 lb

Technical Description


Delivery and Shipping

Usually ships within a week. We will notify you if lead time is extended.

Contact us if you have any questions.

Please contact us if you need assistance selecting your valve assembly.

Description

The VALPRES SERIES 700076 FULL PORT STAINLESS STEEL BALL VALVE 1000 PSI, FNPT THREADED W/ ISO 5211 DIRECT MOUNTING PAD is a unique product. It is full port, with sizes ranging from 1/4” to 3”. It has a pressure rating of 1000 psi and 150 psi steam, and a temperature range of -4°F to 366°F. It also features a blow out proof stem, P.T.F.E. seats with O-ring backing for low operating torque, P.T.F.E. seats and double O-ring stem packing, and is 100% electronically tested in the open and closed position at 80 psi. Additionally, it has an ISO 5211 mounting pad/square stem and ANSI B1.20.1 connections.

Specifications and Data Sheet

  • Data Sheet
  • Valve Type
    BALL VALVE
  • Temperature Rating
    -4 °F to 366 °F
  • Pressure Rating
    1000 PSI
  • Valve Body Type
    2-PIECE
  • Approvals
    NSF 61/372
  • Valve Body Configuration
    2-WAY
  • Valve Connection Type
    FNPT
  • Body Material
    STAINLESS STEEL
