VALPRES SERIES 760195V STAINLESS STEEL SPLIT-BODY FLANGED ANSI 300 V-BALL VALVE

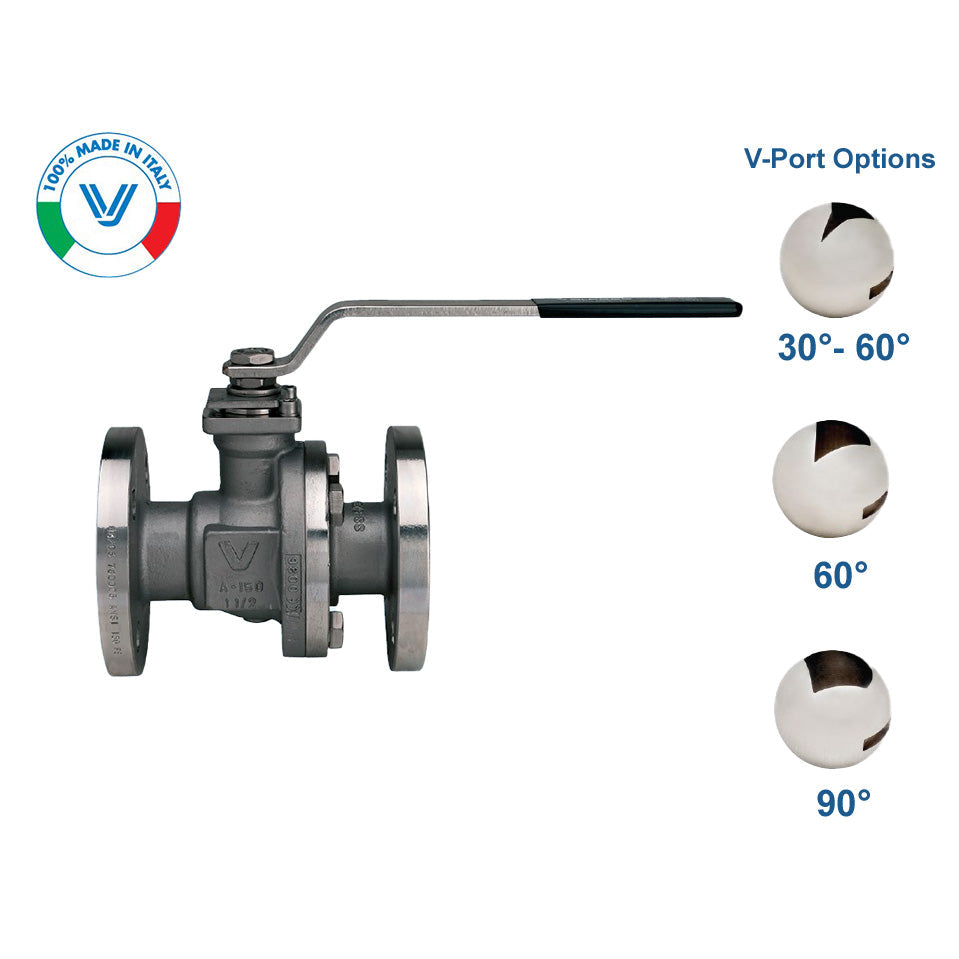

VALPRES SERIES 760195V STAINLESS STEEL SPLIT-BODY FLANGED ANSI 300 V-BALL VALVE - 1/2" ANSI 300 Flanged Ends / 30°-60° V-PORT
Shipping Weight:
Technical Description
Delivery and Shipping
Delivery and Shipping
Usually ships within a week. We will notify you if lead time is extended.
Contact us if you have any questions.
VALPRES SERIES 760195V STAINLESS STEEL SPLIT-BODY FLANGED ANSI 300 ...
Description
Description
Stainless Steel, ANSI class 300 Split Body flanged; 30-60, 60, 90 V-port, sizes 1/2” to 8”; Temperature range -4°F to 450°F; Blow-out proof stem, adjustable stem packing; 25% Carbon Filled P.T.F.E. seats; Steam pressure to 200 psi; 100% tested; PED 97/23/CE; ANSI B16.5, B16.10, B16.34 design; Fire Safe API 6FA-API 607 4th edition; Antistatic Device; ISO 5211 mounting pad with double “D” stem
Specifications and Data Sheet
Specifications and Data Sheet
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
Download
